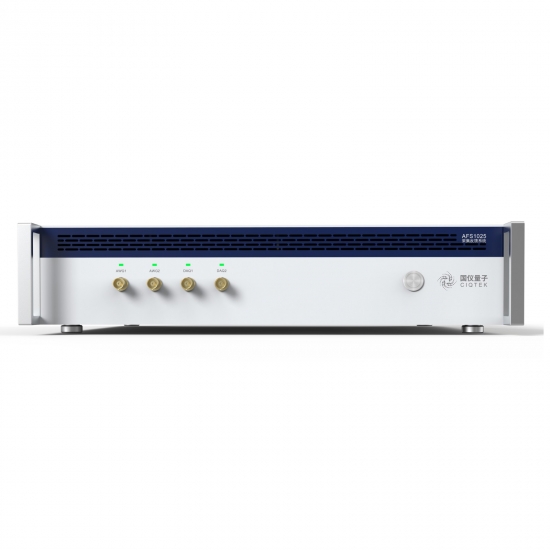

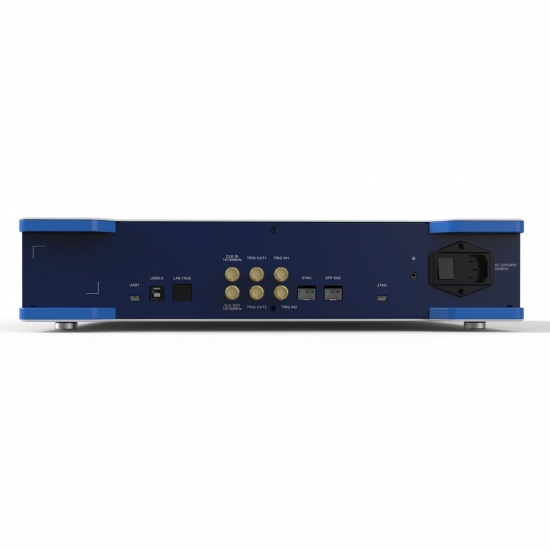

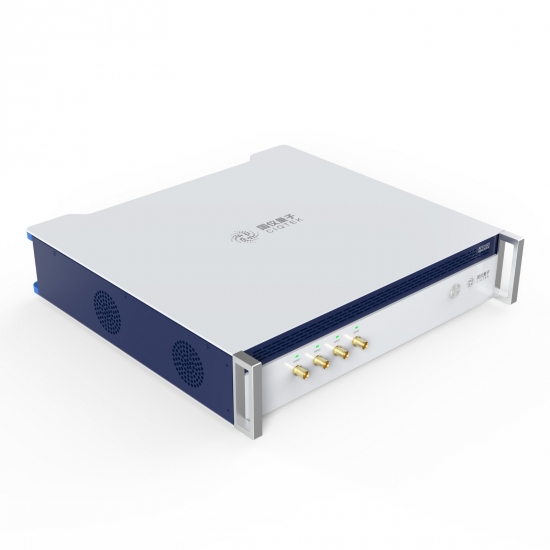

Acquisition & Feedback System | AFS1025

CIQTEK AFS1025 acquisition feedback system is a comprehensive measurement and control system integrating analog signal acquisition and signal output.



It can be widely used in superconducting quantum computing, communication, radar, electronic warfare, and nuclear magnetic resonance. It integrates 2 channels of signal output, acquisition, and FPGA real-time signal processing algorithm.

Output channel: 2 GSa/s sample rate, 430 MHz bandwidth


Parallel demodulation and state judgment of 10 qubits


SDK: Support Python, C++, Matlab


Acquisition channel: 1 GSa/s sample rate, 480 MHz bandwidth


Graphical operation interface


Optional integrated microwave source


512 MSa/ch of waveform storage


Support multi-device synchronization, expand more channels


Signal Output

Channels 2
Interface Type BNC
Analog Bandwidth DC-430 MHz
Vertical Resolution 16 bit
Rise Time/Fall Time <1 ns (@250 mV, 10%-90%)
DAC Sample Rate 2 GSa/s
Storage Depth 512 MSa/ch
Output Amplitude Range ±250 mV, ±750 mV  @50 Ω

Output Harmonics (@250 mV)

HD2:

-70 dBc @50 MHz

-55 dBc @100 MHz

-44 dBc @200 MHz

-50 dBc @400 MHz

HD3:

-67 dBc @50 MHz

-65 dBc @100 MHz

-71 dBc @200 MHz

-66 dBc @400 MHz

Output Noise Amplitude 21n V/√Hz @100 kHz (@250 mV)
Output Phase Noise -135 dBc @10 MHz offset 1 KHz



Reference Clock and Trigger

Reference Clock Input 10MHz/100MHz
Reference Clock Output 10MHz/100MHz
Trigger Input Channels 2
Trigger Input Voltage 0-5V
Trigger Output Channels 2
Trigger Output Voltage LVTTL



Signal Acquisition

Channels 2
Interface Type BNC
Analog Bandwidth DC-480 MHz
Vertical Resolution 12 bit
Input Range ±500mV, ±1.5V @50Ω
ADC Sample Rate 1 GSa/s
Acquisition Length 100 Kpts
Input Harmonics < -64 dBc (@500mV)
ENOB ≥ 8.5 bit



Leave A Message
Please feel free to contact us for more details, request a quote or book an online demo! We will reply you as soon as we can.
Submit
Related Products

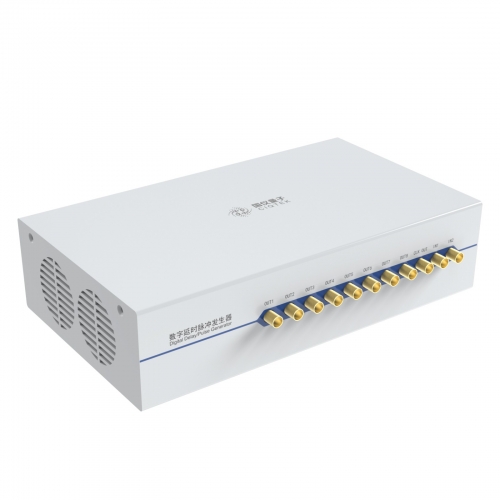

Digital Delay and Pulse Generator for sale
