Scanning NV Microscope (SNVM)

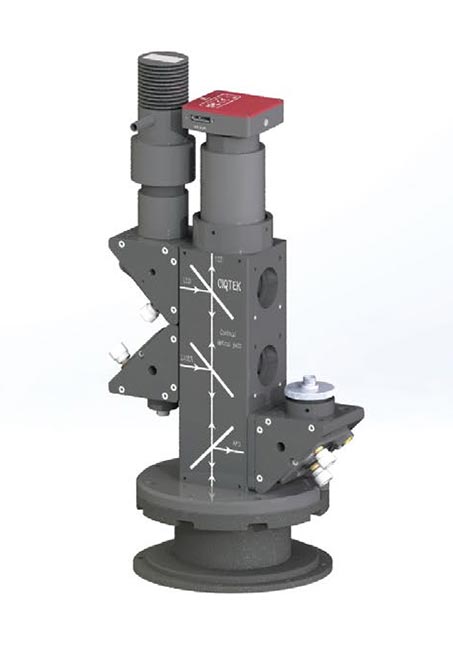

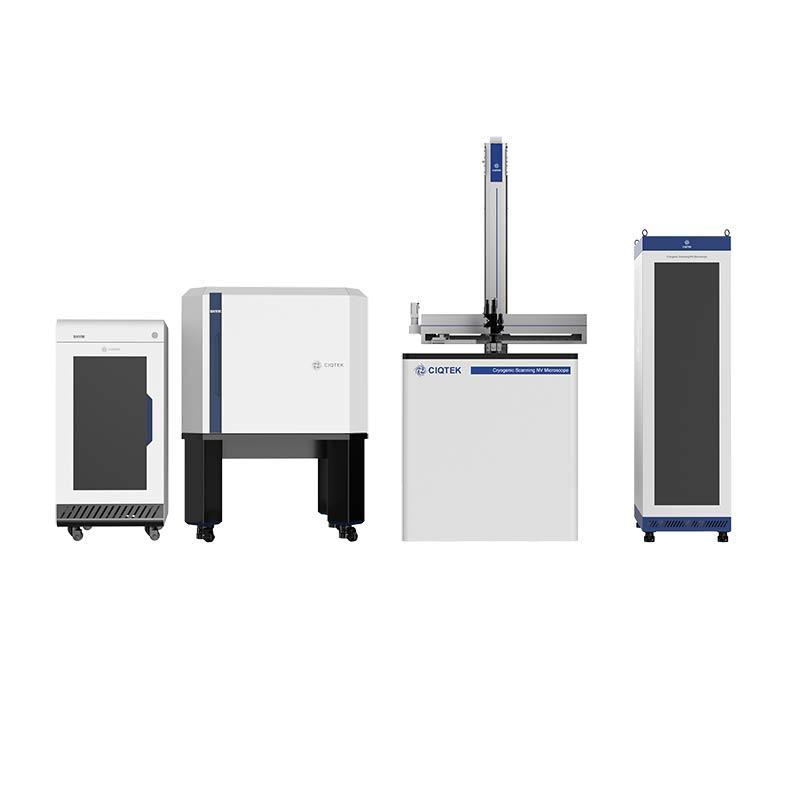

CIQTEK Scanning NV Microscope Diamond III/IV is a scanning NV magnetometer based on the diamond nitrogen-vacancy center (NV center) and AFM scanning magnetic imaging technology. The sample's magnetic properties are obtained quantitatively and non-destructively by control and readout of the spin state in the diamond probe.

Based on the NV diamond magnetometry, it has nanoscale spatial resolution and ultra-high detection sensitivity and can be used to develop and study magnetic textures, high-density magnetic storage, and spintronics.



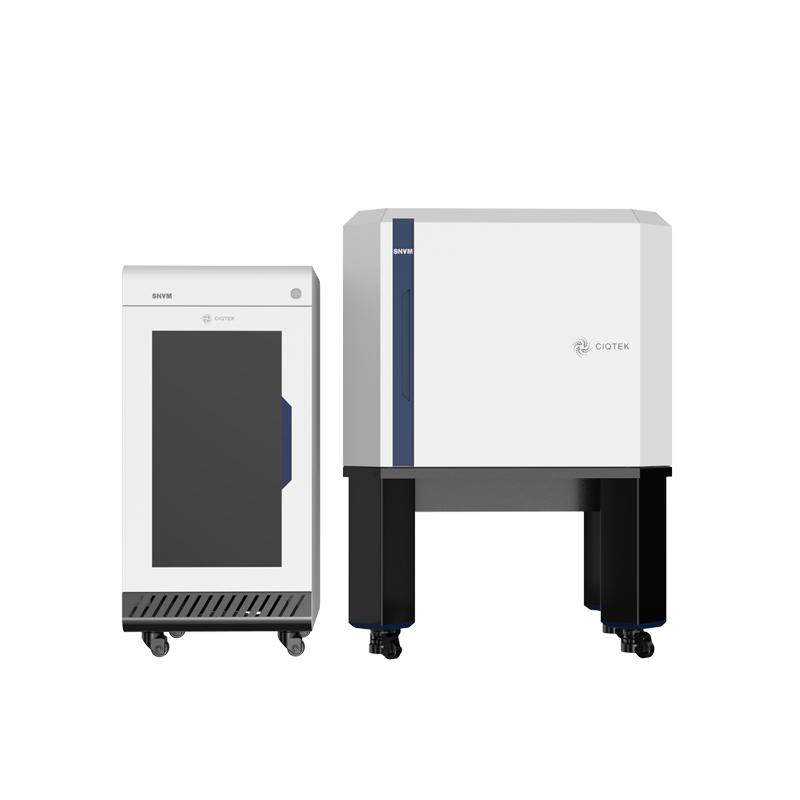

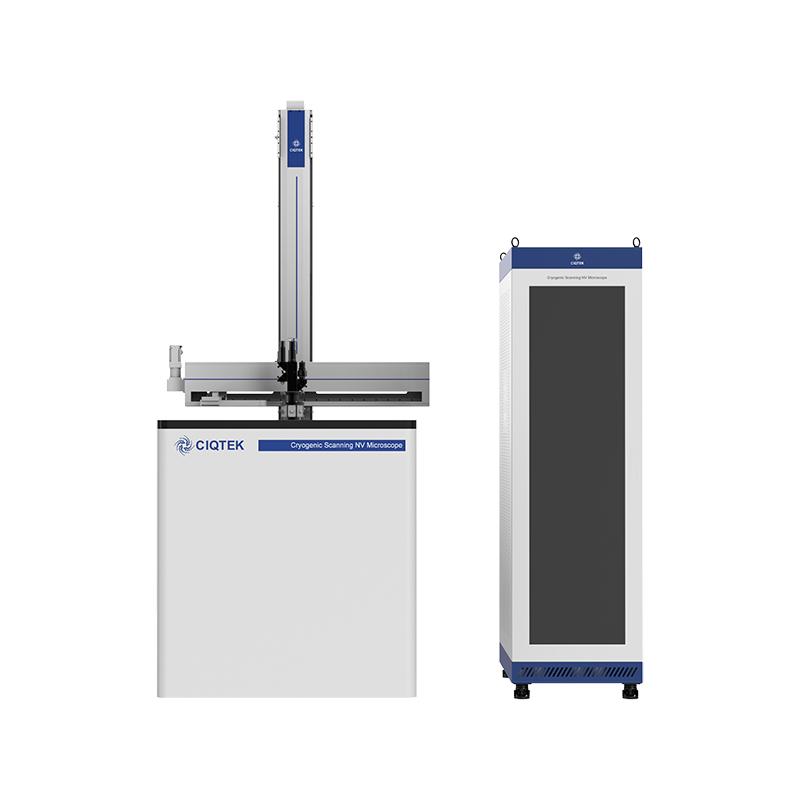

* There are two versions: the ambient version and the cryogenic version.

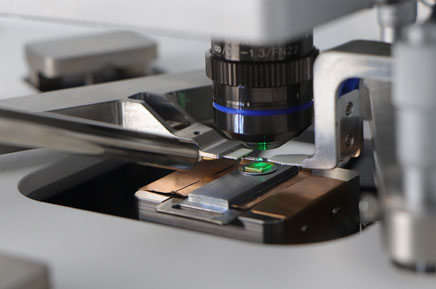

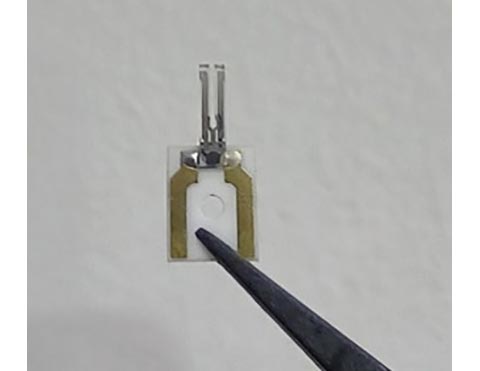

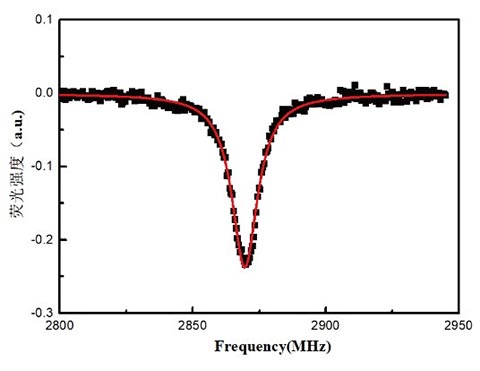

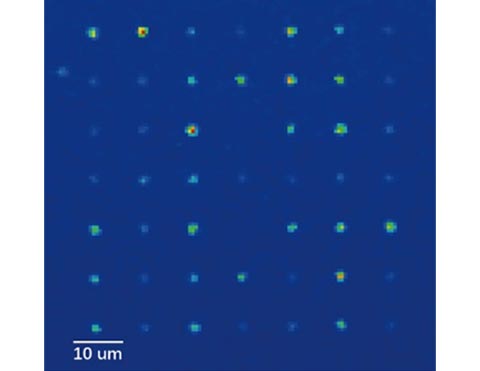

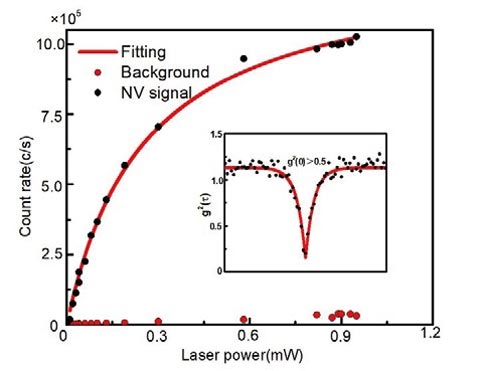

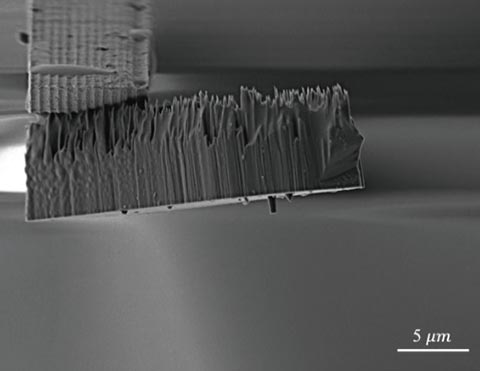

High quality diamond probe

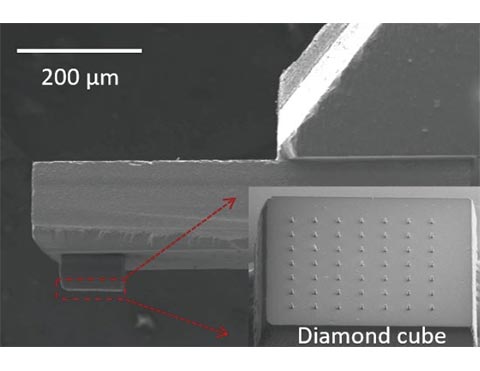

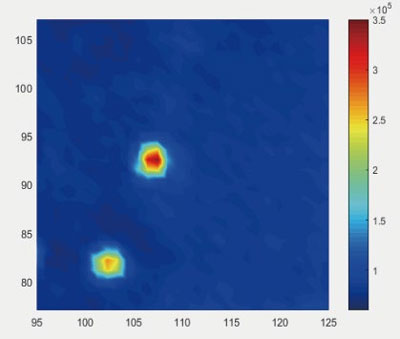

High-quality NV diamond tip

Quantitatively non-invasive magnetic imaging

Quantitatively non-invasive magnetic imaging

High spatial resolution~ 10 nm

Ultra-high spatial resolution 10-30 nm

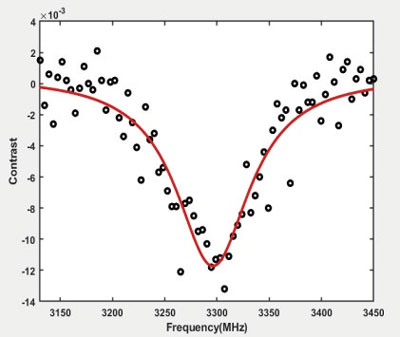

High magnetic field sensitivity ~1 uT/(Hz1/2)

Ultra-high sensitivity

< 2μT/√Hz

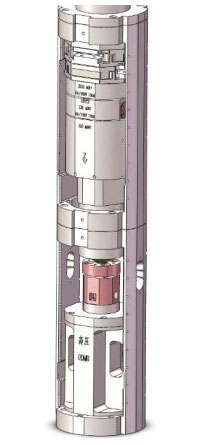

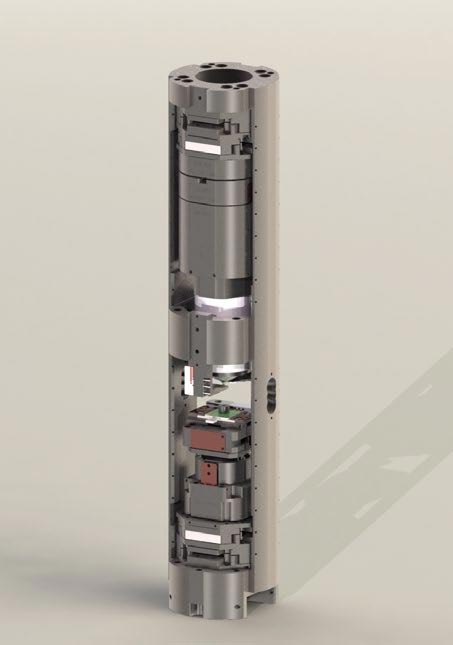

 Compatible with both ambient conditions and low temperature high vacuum

Support ambient and low-temperature high-vacuum conditions





CIQTEK Scanning NV Microscope - Diamond III/IV has extensive applications in many research fields, such as chemicals, materials science, biological, medical treatment, etc.



Cellular Imaging In Situ

The in situ measurement of the distribution and imaging of biomolecules within cells is one of the fundamental goals of life science. Among various imaging techniques, the magnetic imaging (MI) technique can rapidly and non-destructively acquire spin distribution images in vivo samples and has been widely used in different scientific fields. Especially in clinical medicine, MI plays an important role in pathological research, diagnosis, and treatment of diseases because it is virtually non-destructive to the organism. However, the traditional MI technique has an induction coil as a sensor with a spatial limit above microns. It is not possible to image at the molecular scale in cells. CIQTEK Scanning NV Magnetometer Diamond III/IV, based on the NV-centered MI in diamond, supports researchers to image ferritin in membrane-bound organelles with a high spatial resolution of ca. 10 nm.

Cellular Imaging In Situ

References:

Sci. Adv. 5, eaau8038 (2019)

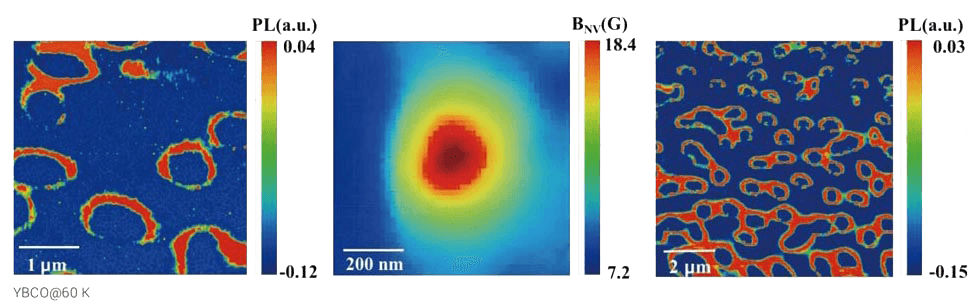

Topological Magnetic Structure Characterization

Magnetic skyrmions are nanoscale vortex magnetic structures with topological-protected properties. It demonstrates a wealth of novel physical properties and provides a new platform for the study of topological spintronics. Potential future applications for high-density,  low-power,  non-volatile computing and storage devices are highly anticipated. However, the detection of individual skyrmions at room temperature remains experimentally challenging. Due to the features of high sensitivity and high resolution, CIQTEK Scanning NV Magnetometer Diamond III/IV provides an answer to this long-standing magnetometry and imaging problem of reconstructing the full set of spin textures from the measured stray field using a general formalism easily applicable to all local magnetometry techniques.

Topological Magnetic Structure Characterization

References:

Nat. Commun. 9, 2712 (2018)



Superconductors Magnetic Imaging

Microscopic studies of superconductors and their vortices play a pivotal role in understanding the mechanisms underlying superconductivity. CIQTEK Scanning NV Microscope - Diamond III/IV spectrometer under cryogenic conditions demonstrates its quantitative measuring and imaging ability in the superconductor vortices study. And this technology can be expanded to more cryogenic condensed matter systems.

Superconductors Magnetic Imaging

References:

Nature Nanotech. 11, 677 (2016)

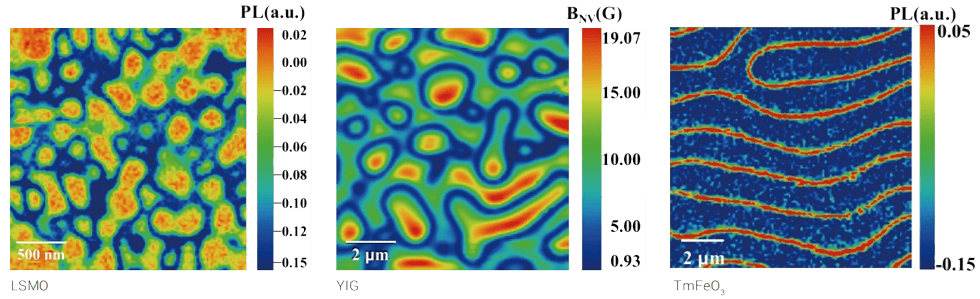

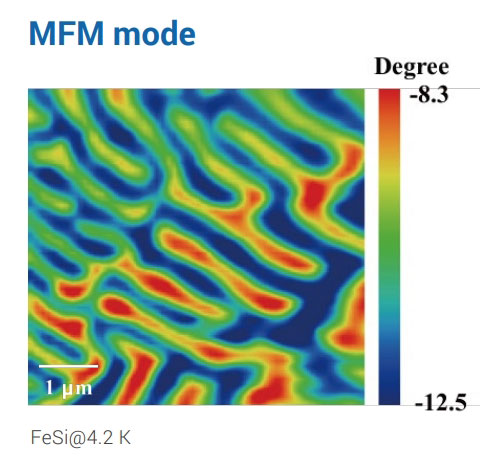

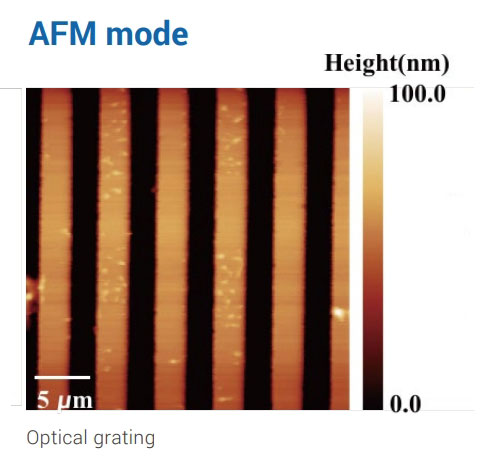

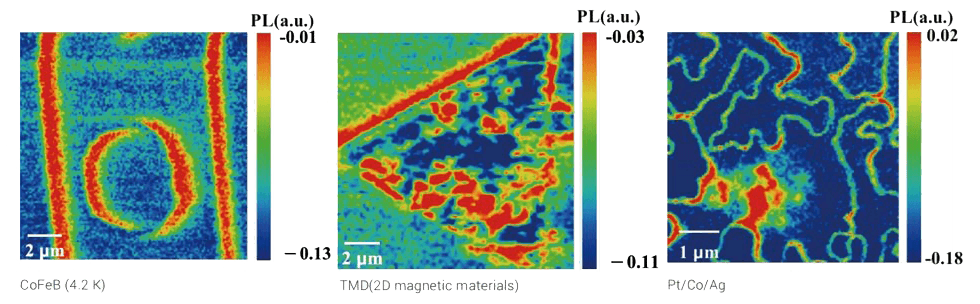

Micro-nano Magnetic Imaging

In condensed matter physics, making sure the static spin distribution of magnetic materials is a significant physical issue. It is also the key to studying new magnetic devices. CIQTEK Scanning NV Magnetometer Diamond III/IV spectrometer provides a new measuring approach to achieve high spatial resolution, with the unique advantages of non-invasion, covering a wide temperature range and a large magnetic field measurement range.

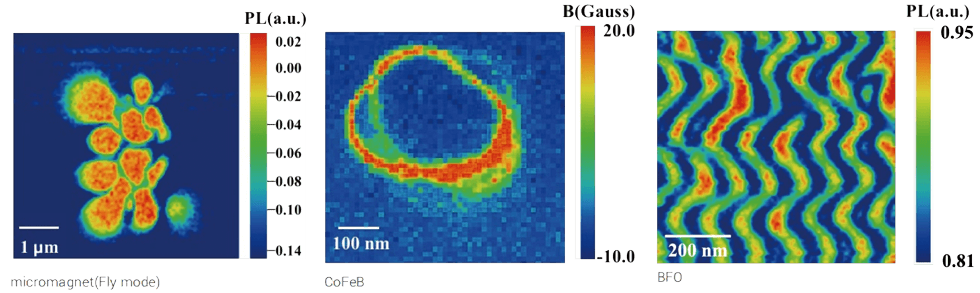

Micro-nano Magnetic Imaging

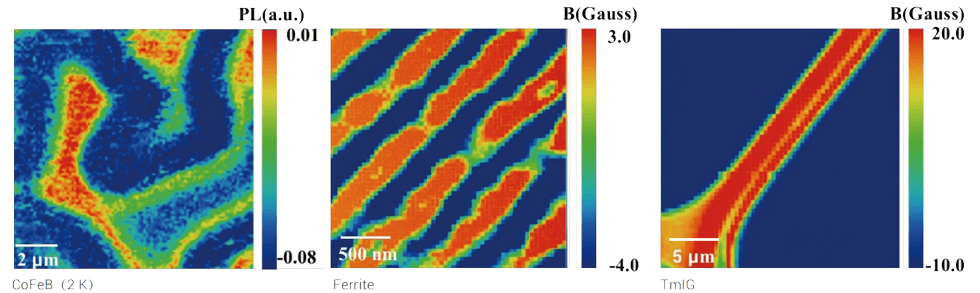

Magnetic imaging of Bloch domain wall



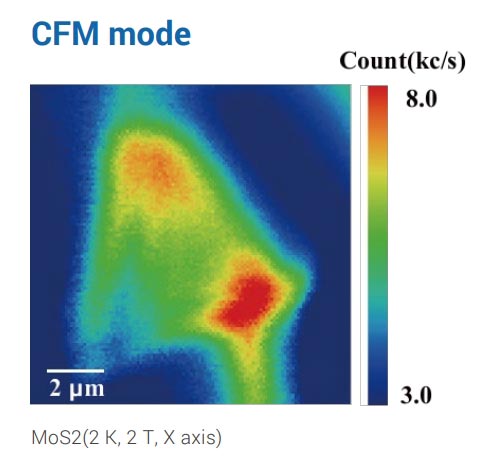

Magnetic Imaging of Solid-state Matter

Many solid states exhibit unusual magnetic sequences at low temperatures. The highly sensitive properties of NV-center cover the temperature range from cryogenic to above room temperature. the cryogenic Scanning NV Magnetometer - Diamond III/IV enables nanoscale magnetic imaging, which is not possible in current condensed systems, is useful for studying magnetic phase transitions in solid states at low temperatures, and is also compatible with mechanistic studies of superconductors.

Magnetic Imaging of Solid-state Matter

References:

Nature Nanotech. 11, 700 (2016)
