Intelligence
Intelligent control touchscreen and remote access enable a versatile NMR management environment. By deeply integrating AI technology with scientific instrumentation, the system serves as a dedicated intelligent assistant for NMR experiments.
Efficiency
A newly designed system architecture allows for rapid shimming and tuning. Supports fast automatic sample exchange, reducing sample changeover time to just a few seconds.
Expansion
Distributed cabinet design with independent transceiver channels ensures high system flexibility. The platform features strong compatibility and supports future spectrometer modernization and upgrades.

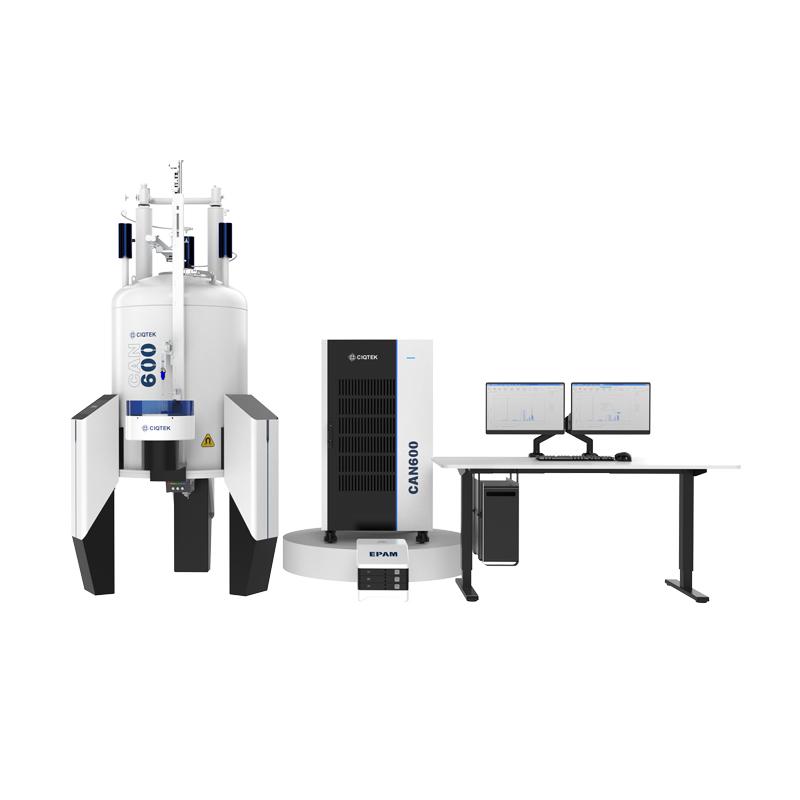

♦ Low-consumption, ultra-high homogeneity, ultra-shielded 600 MHz superconducting magnet.

♦ High-sensitivity auto-tuning probe, supporting ¹H→¹⁹F and ¹⁹F→¹H decoupling experiments, with fast tuning capability.

♦ Advanced distributed cabinet design, expandable to 8 independent transceiver RF channels. Timing resolution: ≤ 4 ns, frequency resolution: ≤ 0.0005 Hz

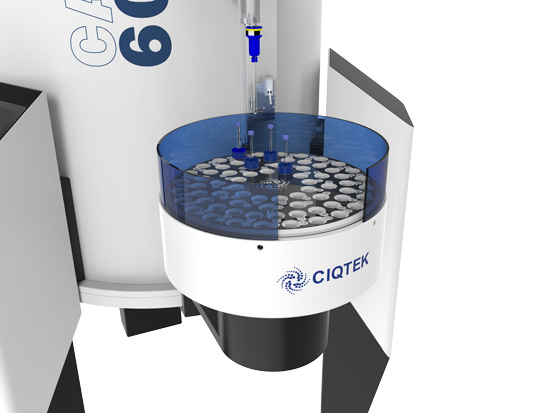

♦ 72-position automatic sample changer mounted at the magnet's midsection, supporting rapid sample exchange and bi-directional rotation of the sample reservoir.

♦ Intelligent control touchscreen enables instrument status monitoring and sample control at your fingertips—no need for a PC, keyboard, or mouse.

♦ Smart software enables remote spectrometer power control and real-time monitoring of experiments and system status.

NMR in Chemistry
Study of the kinetics of chemical reactions, determination of catalyst structures, capture and identification of intermediates in multi-step synthesis, screening of combinatorial compound libraries, and identification of unknown products.
NMR in Environmental Sciences
Detection of heavy metals and radionuclides, environmental phosphorus morphology analysis, soil organic matter components and stability study, atmospheric aerosol research systems analysis, etc.
NMR in Energy
Research on sodium and lithium battery electrolyte systems, analysis of battery electrode materials, composition analysis of liquid fuels and lubricating oils, and study of hydrogen energy photoelectrocatalysis.
NMR in Food Science
Analysis of fatty acid composition, adulteration detection and quality control, origin identification of agricultural products, and food additive detection.
NMR in Biological
Bacterial RNA structure determination, identification of protein complex interaction mechanisms, structural analysis of membrane proteins and fibrils, analysis of cellular biomolecular complexes, and metabolite analysis.
NMR in Medical Research
Structural analysis of disease target proteins, life cycle study and inhibition of viruses, development and inhibition process analysis of cancer cells, drug mechanism of action and antibody research, high-throughput drug screening, etc.

Lignin extracted from sweet sorghum bagasse pretreated with low-moisture anhydrous ammonia (LMAA) was extensively characterized using diffusion-ordered NMR spectroscopy, one-dimensional ¹H NMR, and multinuclear two-dimensional NMR techniques, including HSQC, HMBC, and HSQC-TOCSY. These analyses, combined with other complementary methods, enabled the detailed structural elucidation of the lignin, allowing its structural features to be correlated with molecular weight information.

Reference: BioEnergy Research (2022) 15: 1449-1458

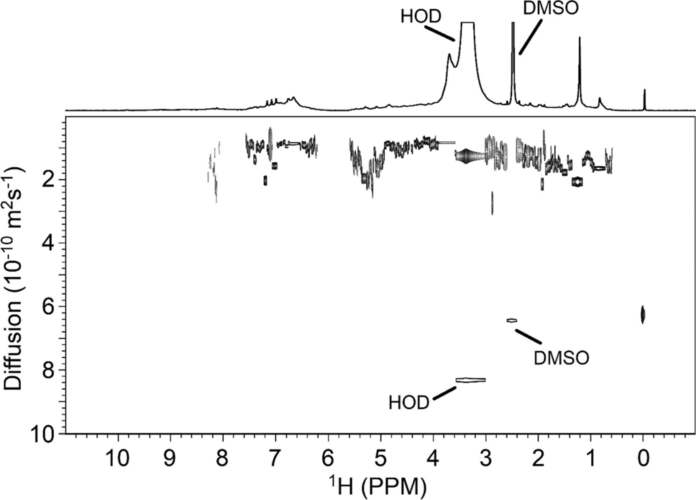

Full Diffusion NMR Spectrum of Lignin Extracted from LMAA-Treated Biomass

Quantitative nuclear magnetic resonance (qNMR) spectroscopy, based on the proportional relationship between the integrated signal area and the number of resonating nuclei, enables the accurate determination of metabolite concentrations in biological systems. This makes qNMR a valuable tool in metabolomics and bioanalysis for revealing the metabolic state of organisms.

Reference: Magn. Reson. Chem. 2009, 47, S147-S156

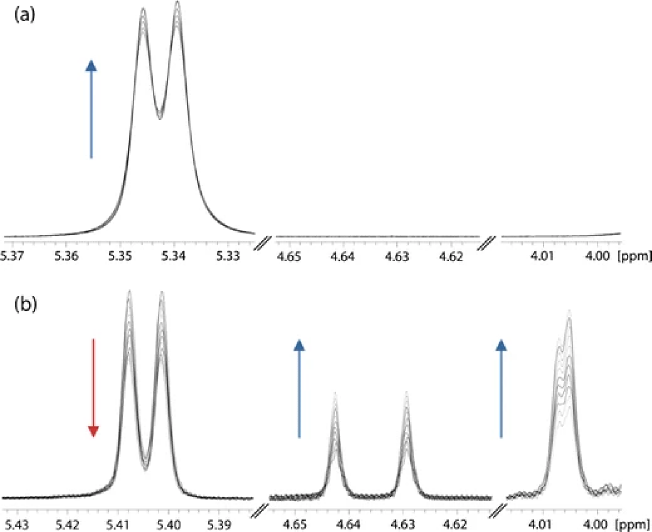

Time-Dependent ¹H NMR Spectra of 10 mM Sucrose Solution in (a) 50:50 CD₃CN/D₂O and (b) Perchloric Acid Solvent

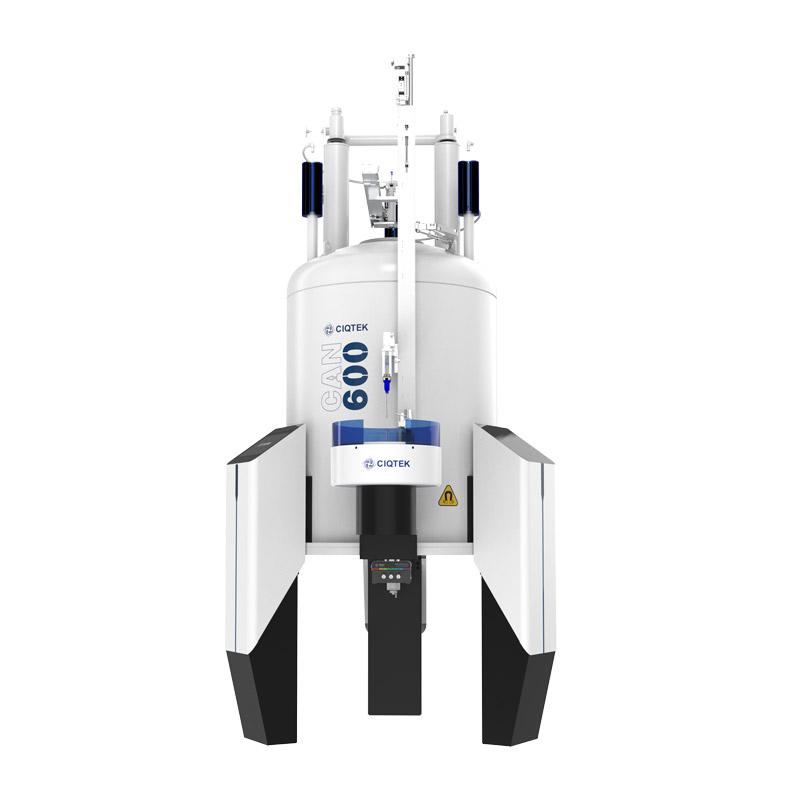

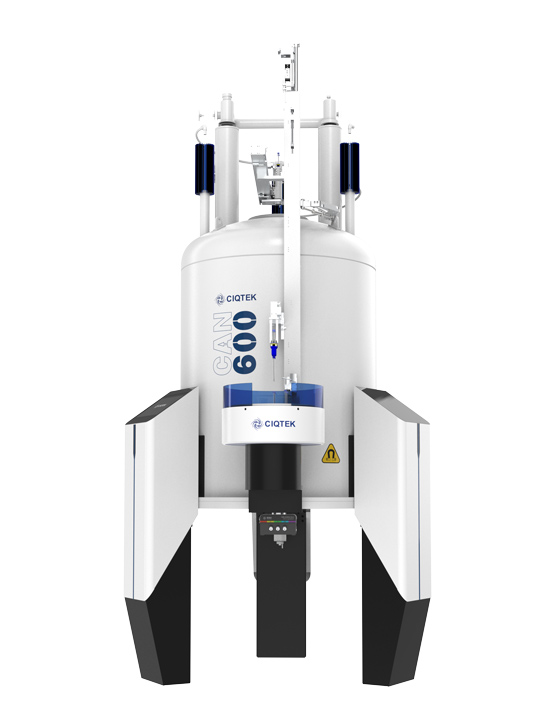

Magnet

• 14.1 Tesla, high-homogeneity magnetic field
• Standard 54 mm room-temperature bore, compatible with various probes
• Long liquid helium hold time
• Equipped with a liquid helium level measurement system featuring a low helium level alarm
• Integrated intelligent control screen for quick access to system status

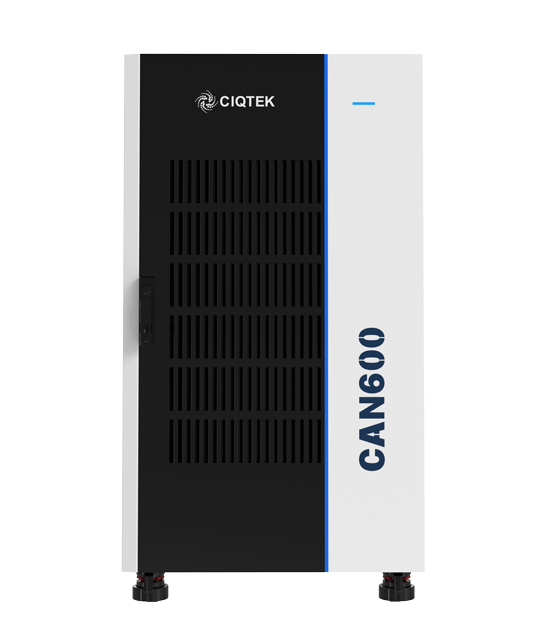

Console

• Distributed design for easy instrument configuration and upgrades
• Each channel independently supports RF transmit and receive capabilities, facilitating multi-channel operation
• Time resolution: ≤ 4 ns
• Frequency resolution: ≤ 0.0005 Hz
• Phase resolution: ≤ 0.001°
• High-precision digital control enables simultaneous RF frequency, amplitude, and phase adjustment within 4 ns
• Maximum receiver spectral width: 12.5 MHz
• Built-in computer, independent of the client workstation
• Enable remote power-up and power-down through software for easy control

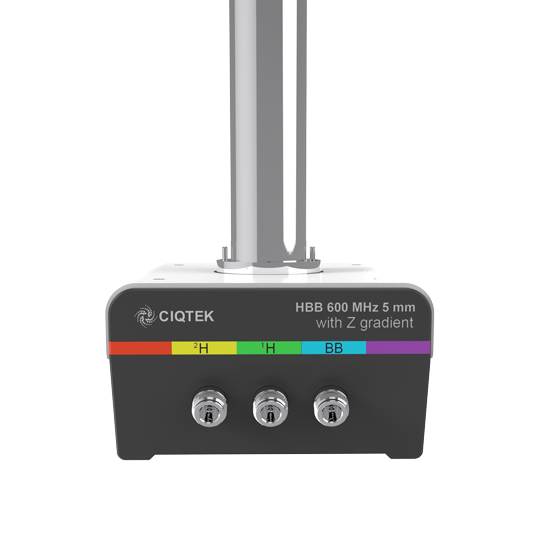

Probe

• Suitable for 5 mm diameter sample tubes
• Detectable Nuclei: ¹H, ³C, ¹⁵N, ³¹P, ¹⁹F, and other nuclei
• Supports manual and auto-tuning
• High sensitivity and resolution
• Wide adjustable temperature range
• Capable of ¹⁹F NMR experiment with ¹H decoupling and ¹H NMR experiment with ¹⁹F decoupling

Preamplifier

• The preamplifier is separated from the console
• Multi-channel preamplifier
• Low noise minimizes the impact on signal acquisition
• Built-in dynamic transmit-receive switch on all channels
• Supports multi-channel configurations

Autosampler

• Capacity: 72 positions
• Installation Position: mounted at the magnet midsection
• Supports bidirectional rotation
• Rapid sample exchange in seconds
• The next sample can be prepared in advance

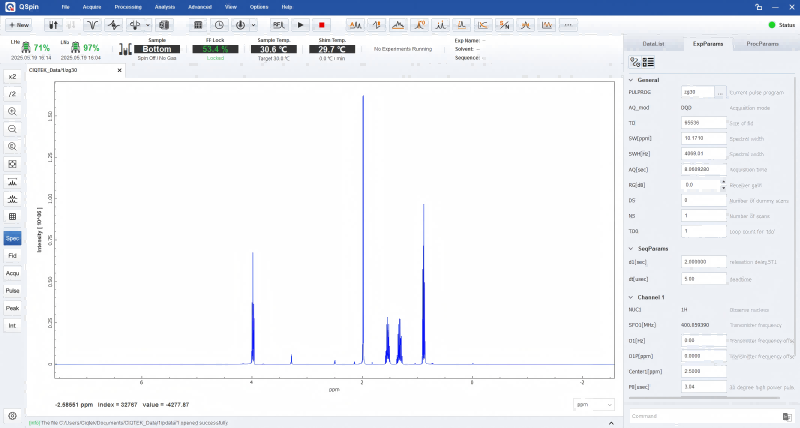

Software

• Intelligent software simplifies user operations
• Streamlined software with one-click data processing improves experimental efficiency
• Experimental data can be saved in universal formats

Magnet	Magnetic Field Strength	14.1 Tesla
Magnet	Room-Temperature Bore Diameter	54 mm
Console	Transceiver RF Channels	Default 2, expandable to 8
	Frequency Resolution	0.0005 Hz
	Timing Resolution	4 ns
	Phase Resolution	0.001°
	Maximum Receiver Spectral Width	12.5 MHz
Probe	Detectable Nuclei	¹H, ¹³C, ¹⁵N, ³¹P, ¹⁹F, and other nuclei
	Deuterium Lock	Support
	Tuning and Matching	Rapid auto-tuning and matching are supported
Software	Operating System	Windows
	Supported Experiments	Data acquisition and processing capability for 1D, 2D, and other NMR experiments
	Experimental Data	Common NMR experimental methods are supported, and data can be exported in standard formats.
	Pulse	Pulse sequence editing and graphical interfaces are supported
	Remote Control	Enable software-controlled console power-up and power-down
Autosampler	Slots	72
	Installation Position	At the magnet's midsection
	Rotation Direction	Bidirectional rotation
	Fast Sample Exchange	Equipped with the automatic storage tube, allowing the next sample to be prepared in advance
