High-precision and high-interference-resistant temperature/pressure control system
A high-precision real-time temperature acquisition system with an accuracy as low as 0.01℃ for the gas supply chamber, capable of detecting and analyzing minute fluctuations in temperature and pressure from multiple directions; a highly sensitive temperature feedback control system and a high-interference-resistant thermal insulation constant-temperature layer ensure long-term temperature stability.

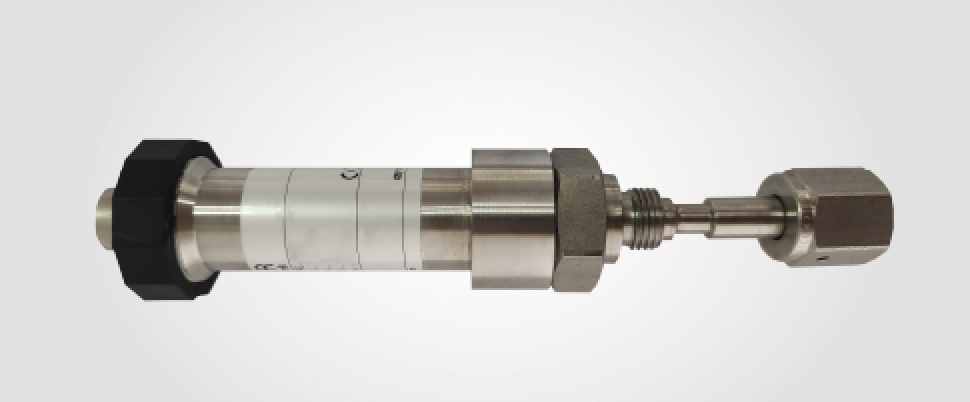

The pressure and temperature information output in digital form has a precision twice as high as that of similar products with analog output, and it has stronger anti-interference ability. Moreover, it is equipped with a photoelectric isolation hub, ensuring high anti-interference and high-speed stable data communication.
50,000-cycle ultra-long lifespan and wide-range temperature/pressure control system

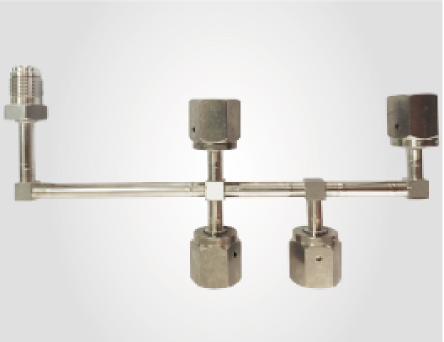

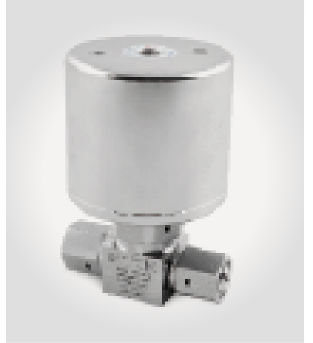

The cobalt alloy high-wear-resistant pneumatic valves used in key parts support over 50,000-cycle ultra-long adsorption/desorption cycle tests, significantly enhancing the instrument's stability and service life.

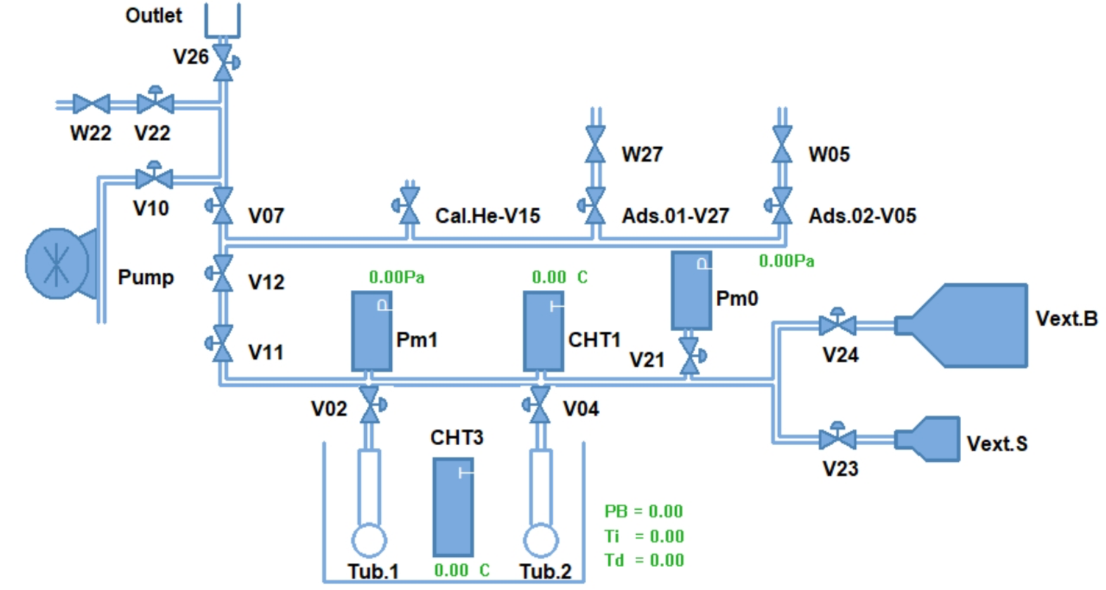

The dual pressure control mode featuring progressive and fine-tuning valve flow control for pipelines can achieve precise pressure control in both high-pressure and low-pressure zones.
Ultra-fast temperature and pressure control and efficient/flexible testing functions
Rapid thermal equilibrium structure design, achieving rapid temperature and pressure balance after pressure control, enabling ultra-fast test preparation, with a single adsorption and desorption test preparation time of ≤ 10 minutes.
High-pressure flow control combined with low-pressure pipeline progressive segmented pressure control is adopted to achieve rapid control of high and low pressures.
All test items can be freely combined, and the one-time fully automatic testing can achieve human-machine separation and all-day testing.
The test conditions and items can be changed in real time without waiting for temperature rise or drop, which is flexible and convenient.
Comprehensive expansion of functional modules and in-situ connection test system
Rapid automatic temperature-controlled water bath system, enabling rapid and stable isothermal line, kinetic and cycle tests of room-temperature solid-state hydrogen storage materials at variable temperatures.
1200 ℃ ultra-high temperature testing system for conducting tests on ultra-high temperature metal materials.
-196℃ liquid nitrogen cryogenic testing system, which enables real-time tube volume correction testing by the reference method and outputs multiple excess adsorption correction curves.
Customizable macro-scale testing system for testing samples in the kilogram range.
An optional molecular pump vacuum testing system can be equipped to further enhance the ultimate vacuum degree, meeting the testing requirements of porous materials.
Low-noise high-pressure booster system to achieve high-pressure testing without gas cylinders.

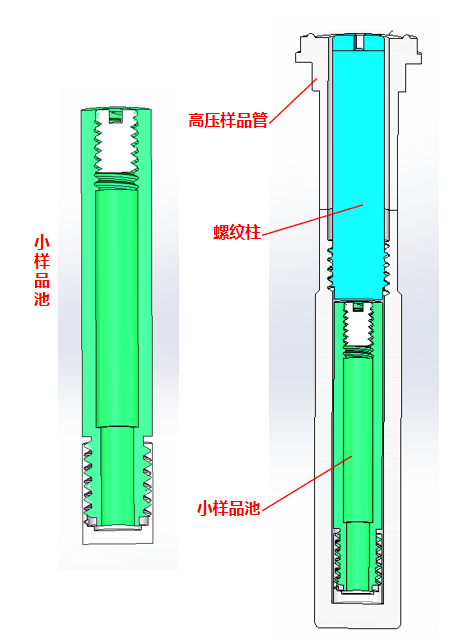

Anti-splash stainless steel micro-welded sample tubes
· Stainless steel micro-welded sample tubes, with standard capacity volume as low as approximately 5 ml, can hold powder and granular samples. Customized large-capacity sample tubes are also available.
The inner part of the sample tube is equipped with a first-level gas barrier system, and a second-level detachable gas filtration system is installed at the sample tube joint. These dual protective measures can effectively prevent samples from accidentally entering the ultra-clean valve body, thereby enhancing the service life and reliability of the instrument.
The detachable small sample cell at the bottom facilitates sample recovery and testing after use, and it can be easily cleaned to prevent sample contamination.
Data accuracy stability breakthrough and establishment of national standards
· By adopting a micro standard cavity, integrating a base cavity with high anti-interference constant temperature system, a rapid and stable thermal equilibrium gas supply chamber structure design, and a highly precise temperature/pressure balance judgment standard, the same level of accuracy as traditional instruments can be achieved using a small amount of sample (from milligram to several grams), which requires tens of grams of sample for testing.
A fully automated testing process eliminates the errors that may be introduced by manual operations. The unattended testing mode can run continuously for long periods of time. After the test is completed, there is no need for any secondary error elimination operations on the data, ensuring the consistency and reliability of the test results among different operators.
The product has participated in the establishment of the national standard "Nanotechnology - Determination of Hydrogen Storage Capacity of Nanoporous Materials - Gas Adsorption Method" (Standard Number: GBT44007-2024), promoting the standardization of the industry and facilitating industrial upgrading.

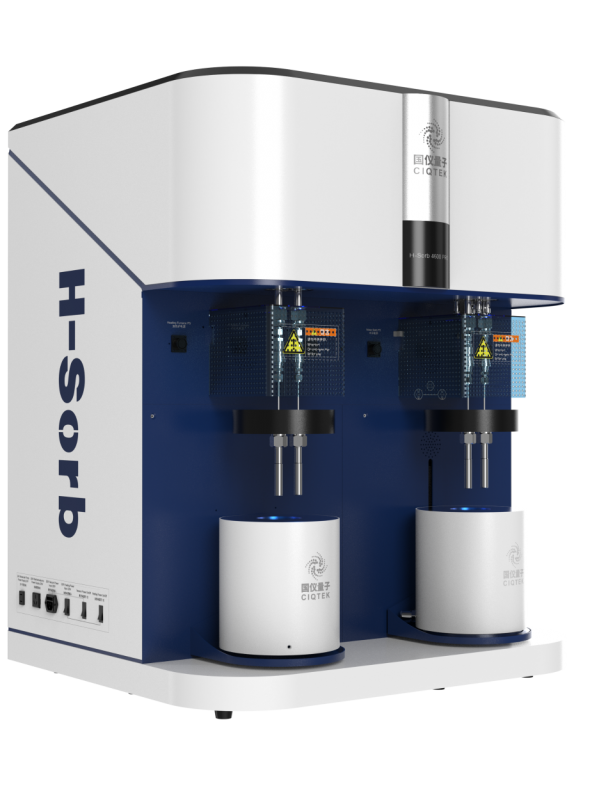

Efficient data analysis and comparison of 2/4 sample test stations
High-anti-interference full-constant temperature system for gas supply chamber, with stable and reproducible test data
Dual adsorbate gas supply ports, test gas software freely switchable
Independent 2-sample pretreatment(2210 Pro) or 4-station is-situ pretreatment (2420 Pro)

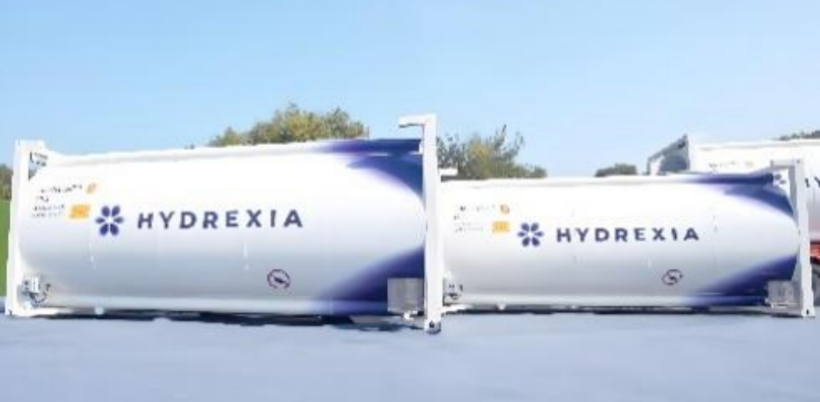

Solid-state hydrogen storage

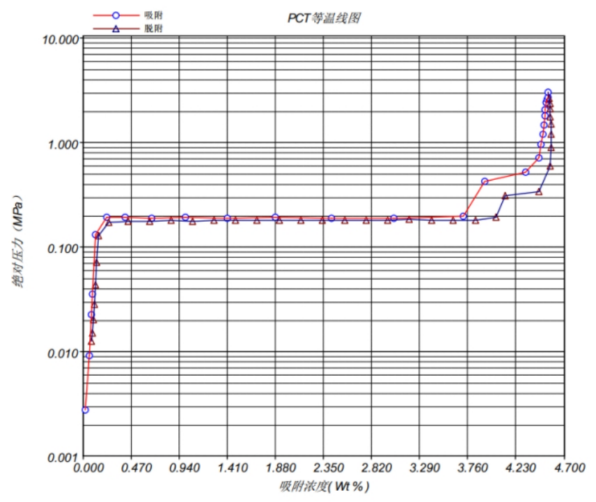

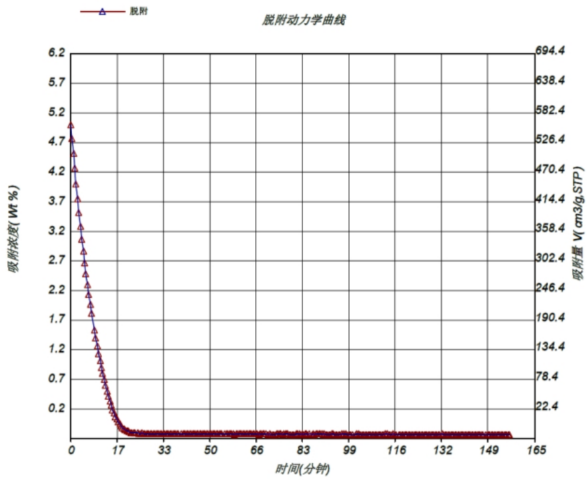

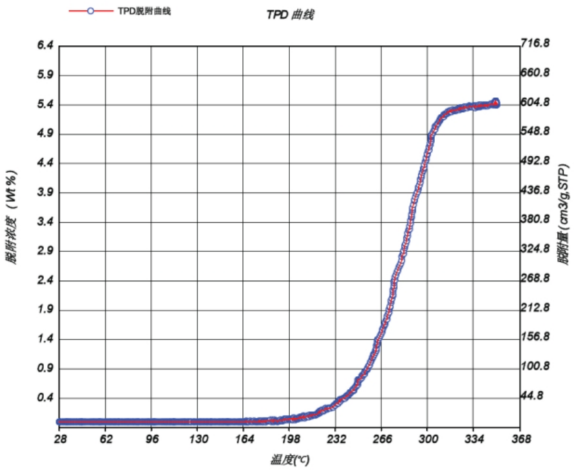

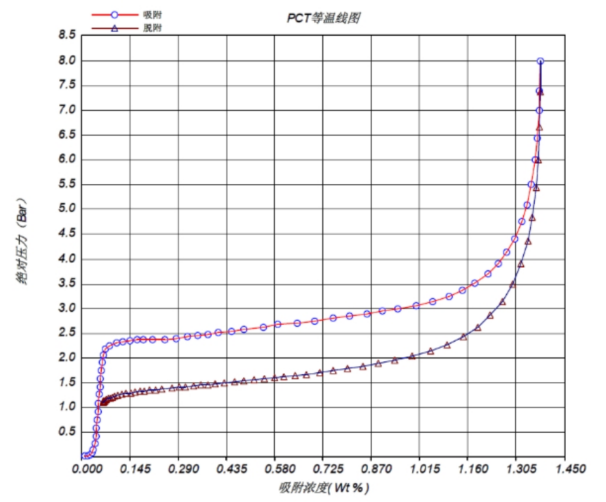

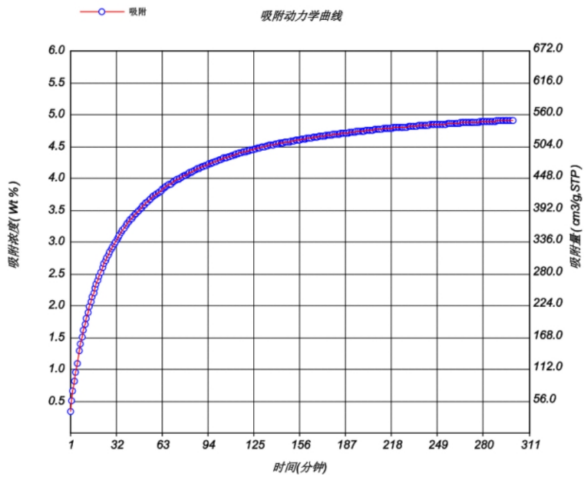

By controlling the adsorption and desorption environment at different temperatures and pressures, the PCT curve, adsorption and desorption kinetics curve, adsorption and desorption cycle life curve, and TPA/TPD curve of hydrogen storage materials are determined, providing data support for the development and modification of hydrogen storage materials, and offering a powerful tool for the research and development of hydrogen energy storage and application.

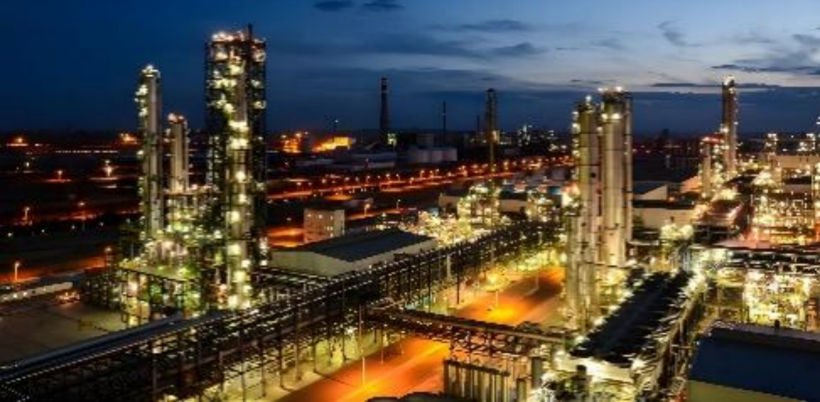

Gas Adsorption and Separation

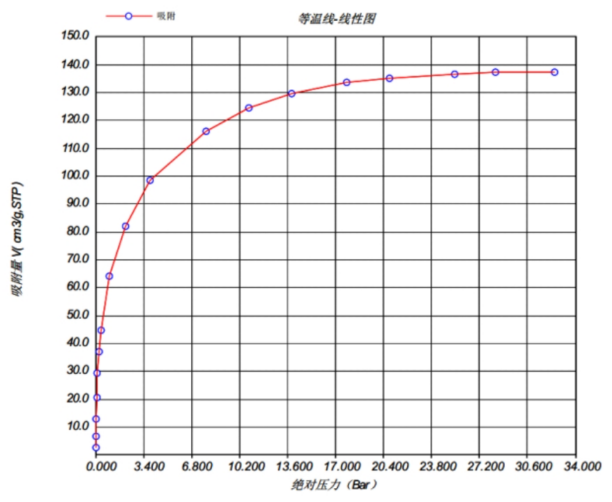

Under simulated industrial conditions, the adsorption selectivity of adsorbent materials such as molecular sieves and activated carbon for mixed gases like CO₂/H₂ is determined to guide the design of pressure swing adsorption (PSA) systems and gas purification processes, and to study the adsorption capacity and regeneration ability of adsorbent materials.

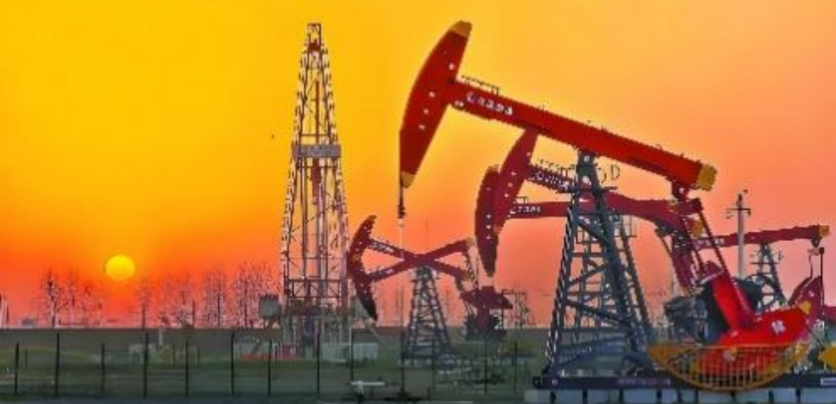

Coalbed and Shale Gas Extraction
By simulating the high pressure and temperature conditions that coal and shale samples are exposed to in underground environments, the isothermal characteristics and adsorption-desorption kinetics of coalbed gas or shale gas (methane) adsorption on coal and shale samples are studied. This can predict the reserves and extraction difficulty of coalbed gas or shale gas, and assess the feasibility and economic value of extraction.
The repeatability accuracy of LaNi5 adsorption capacity is as high as ±1%.

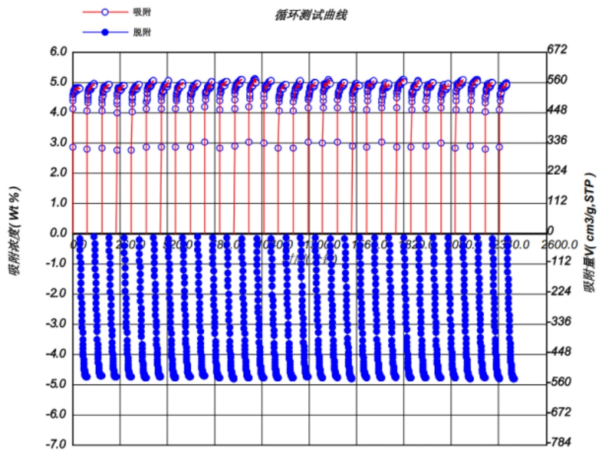

The cobalt alloy high-pressure pneumatic valve supports more than 50,000 ultra-long adsorption and desorption cycle tests.

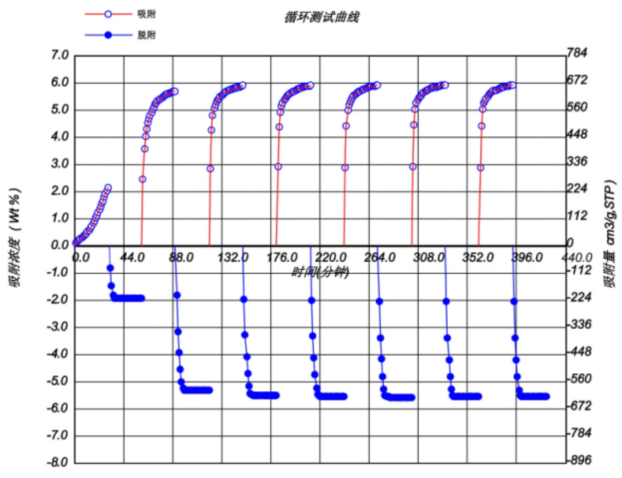

Fully automatic adsorption and desorption temperature-variable testing (PCT, Kinetics, Cycle)

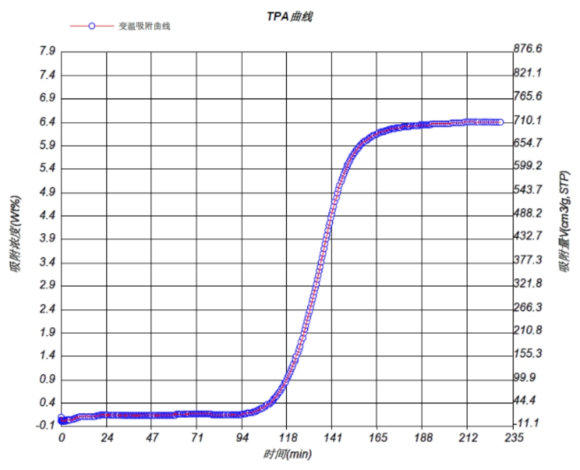

Fully automatic continuous combined testing for any project (PCT, Kinetics, Cycle, TPA/TPD)
Fully automatic continuous multi-temperature testing (PCT, Kinetics)
Ultra-fast temperature and pressure control, with a 20% increase in the efficiency of single-item adsorption and desorption tests (PCT, Cycle).
