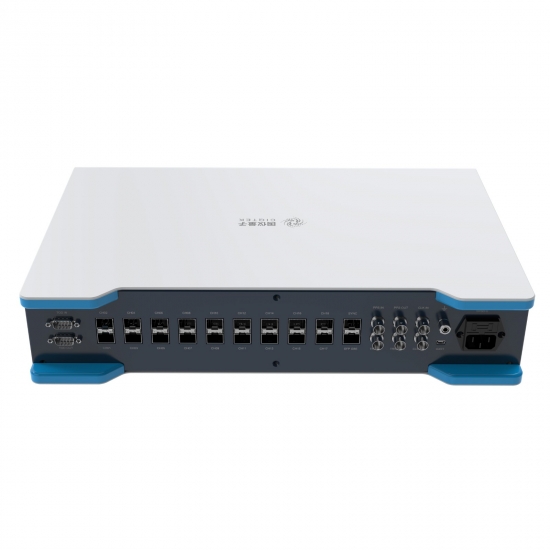

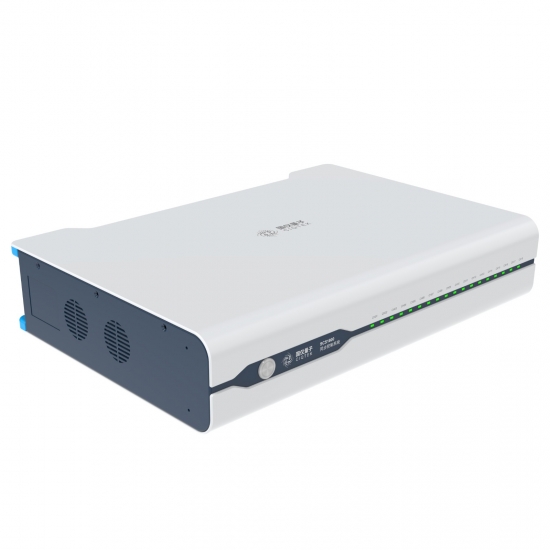

Synchronous Control System | SCS1800

CIQTEK SCS1800 synchronous control system is based on high-precision network clock and time synchronization technology to realize the distribution of multi-node clock signals and sub-nanosecond synchronization control.



It can be widely used in quantum computing, industrial automation control, distributed base stations, power grid synchronization, automatic control, adaptive array antennas and multi-static radars, etc.



Time Synchronization Accuracy < 500 ps





Support 18 Channels





Synchronization Distance Up to 20 km





Arbitrary Cascade and Flexible Topology





Automatic Calibration to Compensate Link Delay Drift





Support Sub-nanosecond Synchronous Trigger Control Function




Time Synchronization Accuracy < 500 ps
Time Jitter < 20 ps
Channels 18
Interface Type SFP



PPS Output

Channel 1
Interface Type BNC
Output Level LVTTL



Trigger Input

Channel 1
Interface Type BNC
Input Resistance 50 Ω
Input Level 0~3.3 V



Synchronize Input

Channel 1
Interface Type SFP
Communication Speed 1 Gbps



Communication

Interface Type SFP
Communication Speed 1 Gbps



Reference Clock Input

Channel 1
Interface Type BNC
Input Resistance 50 Ω
Signal Type Sine / LVTTL
Input Level 0.5 V~3.3 V
Input Frequency 10 MHz/100 MHz



Reference Clock Output

Channel 1
Interface Type BNC
Output Level LVTTL
Output Frequency 10 MHz/62.5 MHz; 100 MHz/125 MHz



TOD Input

Interface Channel 1
Interface Type DB9 (RS422)
Communication Speed 9600 bps



TOD Output

Channel 1
Interface Type DB9 (RS422)
Communication Speed 9600 bps
