Gas Density Analyzer for sale
Gas Density Analyzer for sale

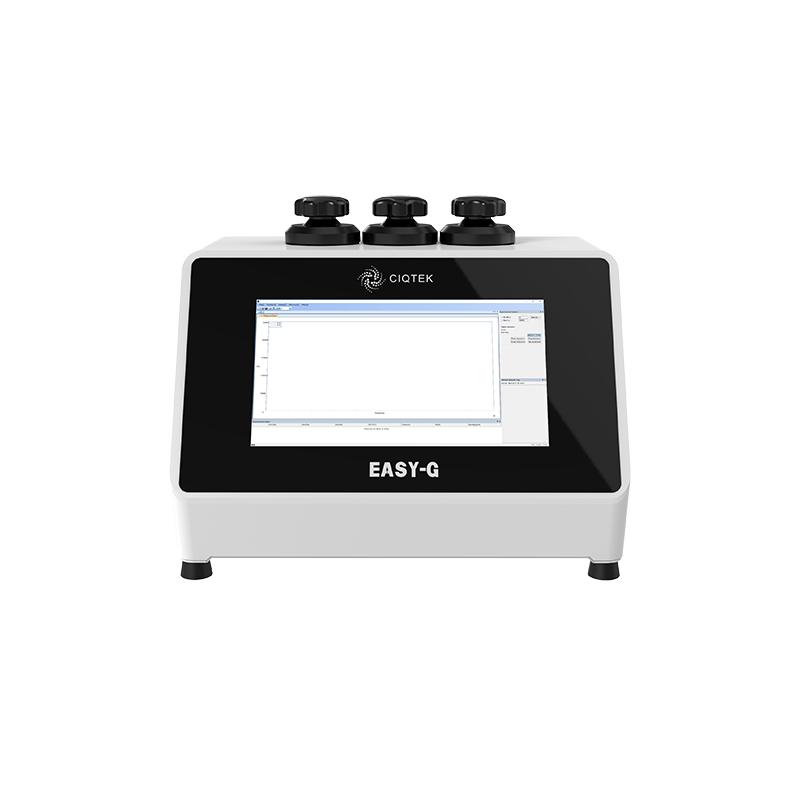

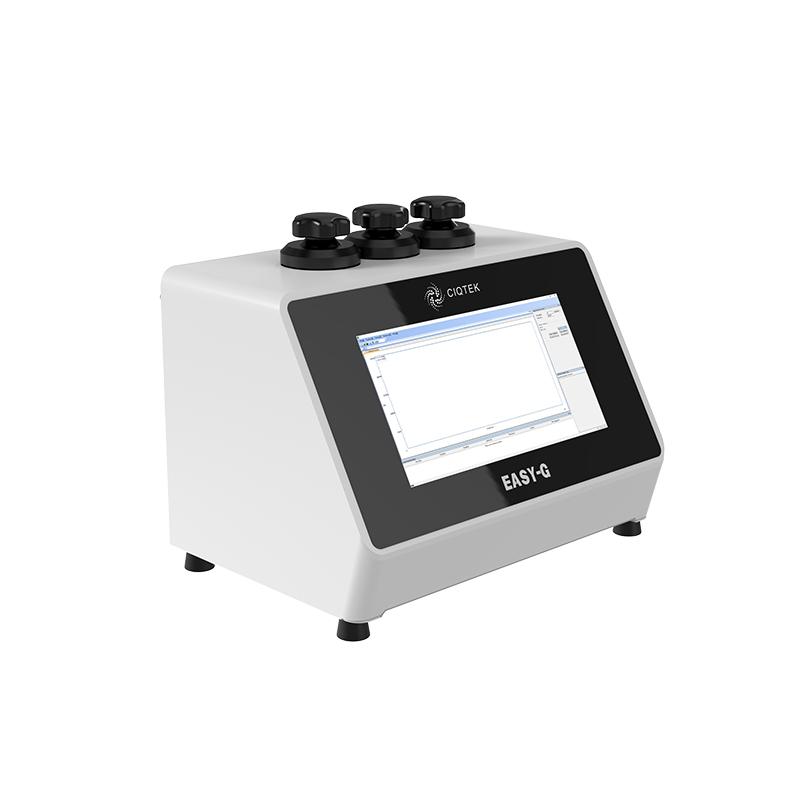

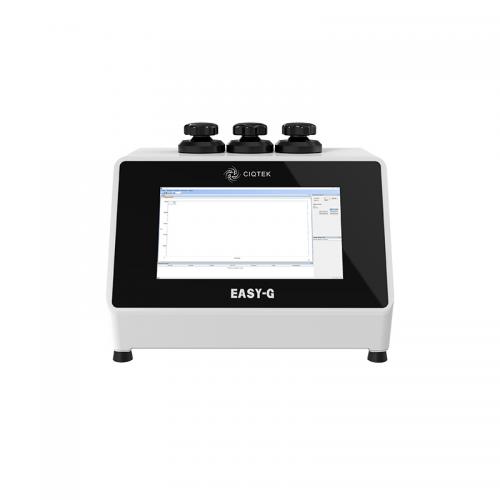

Gas Pycnometer Density Analyzer | EASY-G 1310M

EASY-G 1310M is a high-precision gas pycnometer independently developed by CIQTEK, which adopts the gas displacement method.



It is favored by users for its high integration, compact size, lightweight, and high-cost performance due to the multi-sample container design. Several breakthrough technologies bring high precision and repeatable results of testing.



CIQTEK EASY-G 1310M can quickly and accurately measure the true density and porosity of various materials such as powders, bulk solids, and foams, with high test efficiency, which can be widely used in industrial production lines for rapid product quality testing.

♦  The integrated large package module and the embedded design of the sample containers are conducive to maintaining the temperature consistency between the sample container and the gas temperature in the integrated package chamber, reducing the influence of external factors on the testing process.

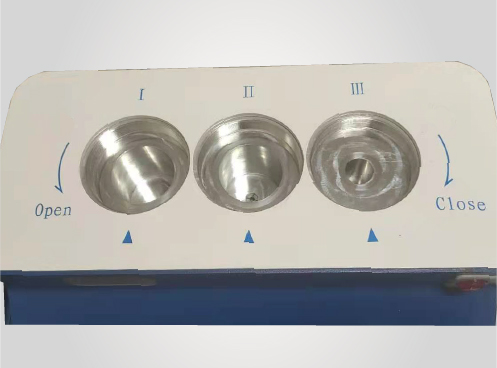

♦  Snap-on sample tube mounting, easy and simple to operate, avoiding operating errors.



♦  The integrated design makes the whole machine compact and can be moved by one person. Meet any desktop environment.



♦  Embedded test computer, safe and stable. The 13.3-inch capacitive touch screen brings a convenient control experience.



Gas Pycnometer Density Analyzer applications - Battery Industry

Battery Industry

Graphite, calcined petroleum coke.

Gas Pycnometer Density Analyzer applications - Powder Metallurgy

Powder Metallurgy

Metal powder, magnesium powder, iron powder, alumina powder, zirconia powder, etc.

Gas Pycnometer Density Analyzer applications - Granular Sample

Granular Sample

Glass powder or granules, crystal powder or granules, etc.

Gas Pycnometer Density Analyzer applications - Liquids

Liquids

Non-volatile, non-corrosive liquids and slurries, etc.

Gas Pycnometer Density Analyzer applications - Chemicals

Chemicals

Glass beads, floating beads, molecular sieves, etc.

Gas Pycnometer Density Analyzer applications - Coal Sample

Coal Sample

Raw coal, pulverized coal, etc.

Gas Pycnometer Density Analyzer applications - Soil

Soil

Cement, lime, rock, etc.

Gas Pycnometer Density Analyzer applications - Open and Closed Porosity

Open and Closed Porosity

Block or foam materials such as rigid foam, rock, etc.

Gas Pycnometer Density Analyzer applications - Food

Food

Sliced bread, chicken, pork, etc.

Model
EASY-G 1310M
Sample Test Number Simultaneous testing of 3 samples
Principle Gas Displacement
Gas Expansion
Gas High purity He or N2 (purity 99.999%)
Accuracy Measuring accuracy ±0.02%, repeatability ±0.01%, testing resolution 0.0001 g/cc
Temperature 15 ℃ (59 °F) ~ 50 ℃ (122 °F)
Mode Negative pressure (0-1 Bar) mode / Positive pressure (1 Bar-2 Bar) mode for measurement on demand
Data Processing Models Highly Accurate PρT Gas Density Calculation Model
Hardware Structure Pressure Transducer Range 3 Bar
Reading Accuracy Accuracy up to 0.05% FS. Long-term stability 0.025% FS
Piping System Packaged Piping System
Control Valve Solenoid valve + O-ring
Vacuum Pump External vacuum pump (optional)
Cuvette Material Cylindrical barrel cuvette
Dimensions L:45cm; W:32cm; H:37.2cm

Integrated Thermostatic System

Gas Pycnometer Density Analyzer Integrated Thermostatic System

- Large heat capacity integrated metal pipeline system to ensure uniformity and slow change of temperature throughout the test.

- The embedded design of the sample container ensures the consistency of the sample temperature and gas temperature, avoiding the test bias introduced by temperature gradients.

- For special samples that need to be measured at a specific temperature, the integrated thermostatic system can control the temperature on demand.







High-precision Digital Acquisition System and Calculation Model

Gas Pycnometer Density Analyzer High-precision Digital Acquisition System and Calculation Model

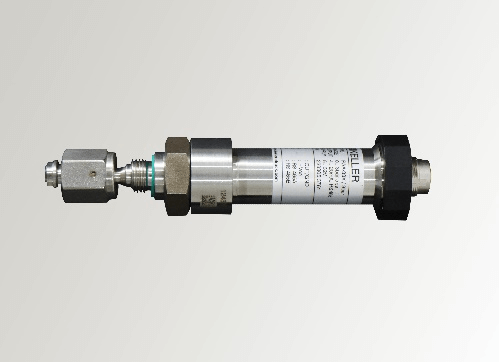

- The digital output pressure and temperature sensor is twice as accurate and more resistant to interference than similar products with analog output.

- Industry-standard RS485 or RS232 communication mode. Add as many sensors as needed to the communication bus for high scalability.

- The high-accuracy PT gas density calculation model eliminates the calculation error caused by the non-ideal state of the actual gas and improves the test accuracy.



Sample Anti-splash Safety Measures

Gas Pycnometer Density Analyzer Sample Anti-splash Safety Measures

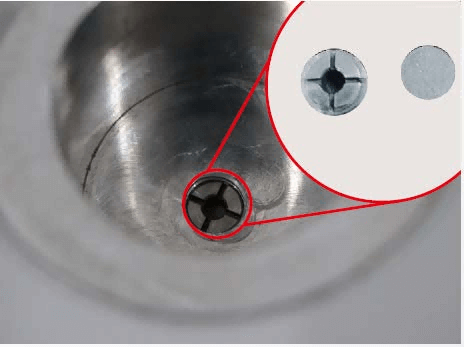

- A detachable filter is installed at the bottom of the sample container to prevent the sample from being drawn into the pipeline system.

- By using the air intake method at the bottom of the test chamber, the sample can be effectively prevented from splashing.

- Two-stage progressive air intake mode with software control of the intake rate to further prevent sample splashing.
