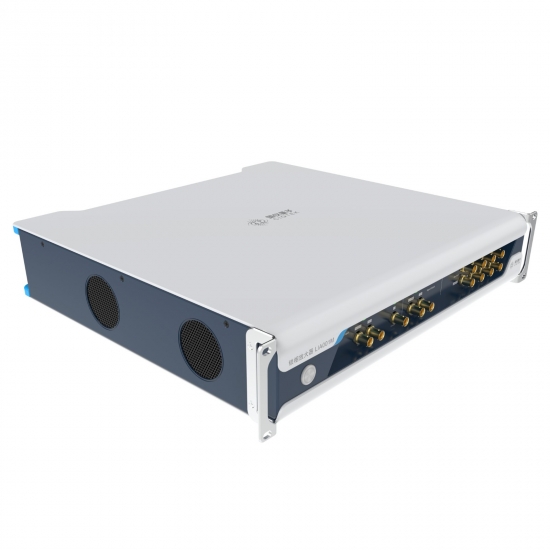

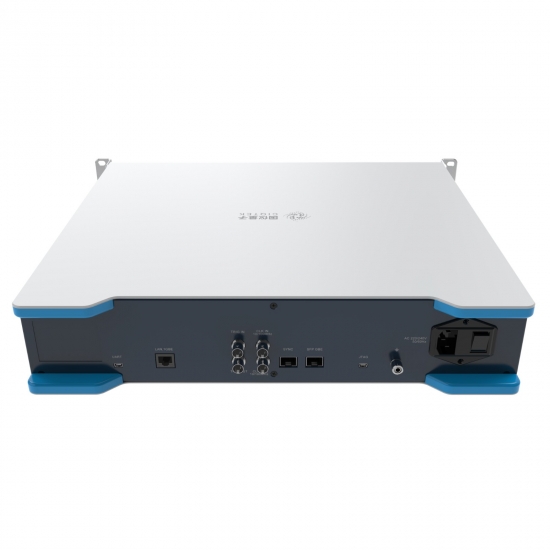

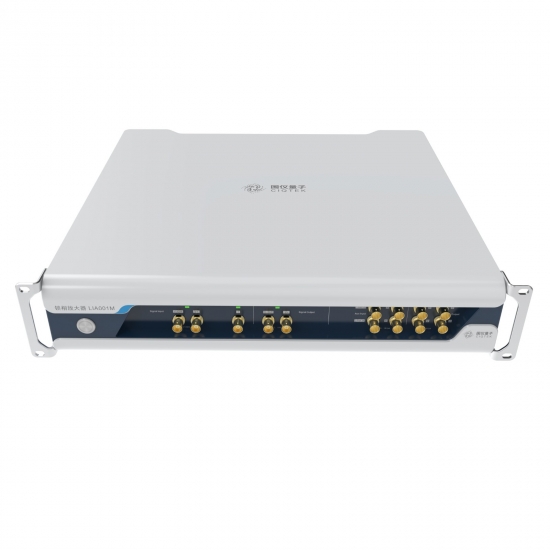

Digital Lock-in Amplifier | LIA001M

CIQTEK LIA001M is a high-performance lock-in amplifier that combines various functions such as lock-in amplification, virtual oscilloscope analysis, parameter scanning, demodulation plotting, and data analysis.



Based on advanced digital signal processing technology and hardware design, it can accurately and quickly detect weak signals drowned in strong noise.



It is one of the important tools for modern weak signal detection and analysis and can be used in various scientific research and industrial applications.



DC ~ 1 MHz demodulation frequency





Current and differential voltage input





100 MSa/s, 16 bit ADC sampling





Full-scale sensitivity from 1 nV to 3 V





Better than 3.1 nV/√Hz noise density





More than 120 dB dynamic reserve





Support Sine and TTL reference signal input and output





3 types of phase-locked demodulation modes: internal reference, external reference, and dual reference





Support 1/1023~1023th harmonic detection function






Optical measurements, spectroscopy





Impedance measurement





Magnetic measurement





Biomedical





Semiconductor materials and devices




Signal Inputs (Voltage and Current)

Voltage Channel 1 (single-ended and differential)
Current Channel 1
Frequency Range 200 uHz ~ 1 MHz
Voltage Input Range

±1 mV,±3 mV,±10 mV,±30 mV,

±100 mV,±300 mV,±1 V,±3 V

Voltage Input Noise 3.1 nV/√Hz@1 kHz
Full-scale Input Sensitivity (Voltage Input) 1 nV-3 V
Current Input Range

±1 nA,±10 nA,±100 nA,±1 µA,

±10 µA,±100 µA,±1 mA,±10 mA

Current Input Noise 20 fA/√Hz@100 Hz
Full-scale Input Sensitivity (Current Input) 10 fA ~ 10 mA
Dynamic Reserve ≥120 dB



Reference Output

Channel 1
Frequency Range 200 uHz ~ 1 MHz
Output Voltage Range ±10 mV,±100 mV,±1 V,±10 V
Signal Type Sine/TTL
Output Phase Range ±180°
Maximum Output Current 100 mA



Reference Input (Can be set to 2 auxiliary inputs)

Channels 2
Frequency Range DC ~ 1 MHz
Signal Type Sine/TTL
Input Voltage Range ±10 V



Demodulator Reference

Number of Demodulators 1 dual-phase demodulators
Reference Mode Selection Internal reference, external reference, dual reference
Harmonic Detection

Support (n/m)* F Harmonic measurement, (n/m)* F≤1 MHz

Range of n (harmonics): 1 ~ 1023

Range of m (harmonics): 1 ~ 1023

Time Constant 126 ns ~ 250 s
Filter Slope (dB/oct) 6, 12, 18, 24, 30, 36, 42, 48
Other Filter Functions Sinc filter
Phase Resolution 10 udeg
Frequency Resolution 1 μHz



Auxiliary Output

Channels 4
Output Voltage Range ±10 V
Maximum Output Current 10 mA



Auxiliary Input

Channels 2
Input Voltage Range ±10 V



Communication

Communication Interface LAN/1 Gbps
Leave A Message
Please feel free to contact us for more details, request a quote or book an online demo! We will reply you as soon as we can.
Submit
Related Products
Time-to-Digital Converter for sale

CIQTEK TDC1610 is a compact high-precision time measurement instrument with 16 acquisition channels, 8ps time resolution, and support for time tag mode, which can record the time information of the acquired signal in real time. It adopts an easy-to-operate graphical interface and provides C++, Python, and LabVIEW SDKs for secondary development. It can be widely used in scientific research fields such as statistical laser post-pulse distribution, optical detection, and lidar ranging.

Learn More

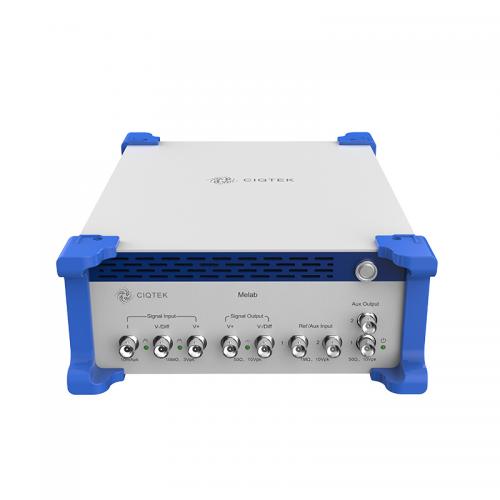

Digital Lock-in Amplifier for sale
