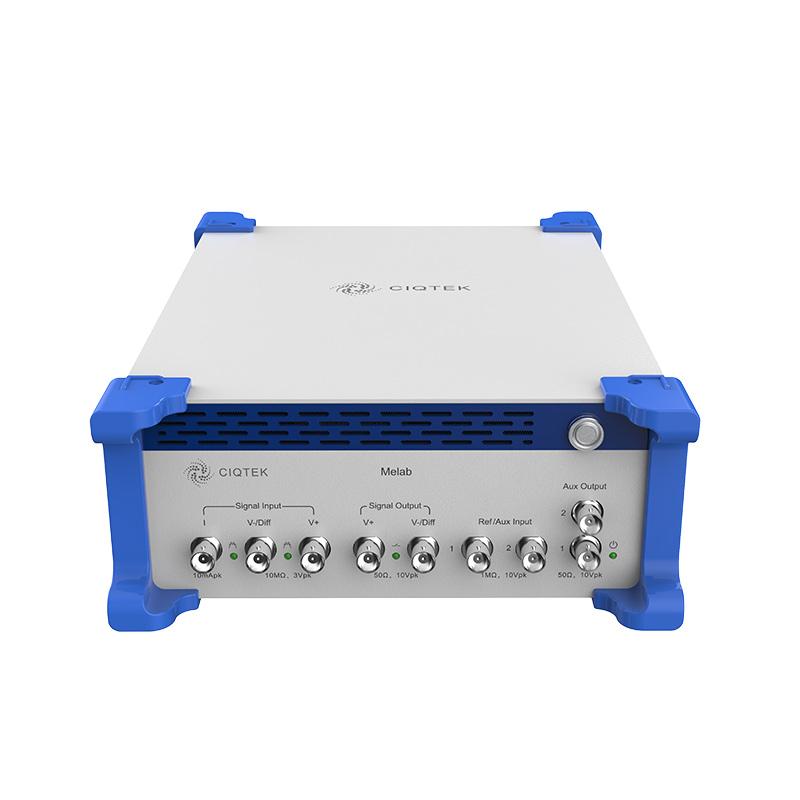

Digital Lock-in Amplifier | Melab

Melab is a high-performance and multi-functional digital lock-in amplifier. With rich analog I/O interfaces and multiple functions such as visual lock-in amplifier, virtual oscilloscope, parameter scanner, signal generator, data acquisition, AM/FM modulation, PID controller, etc.

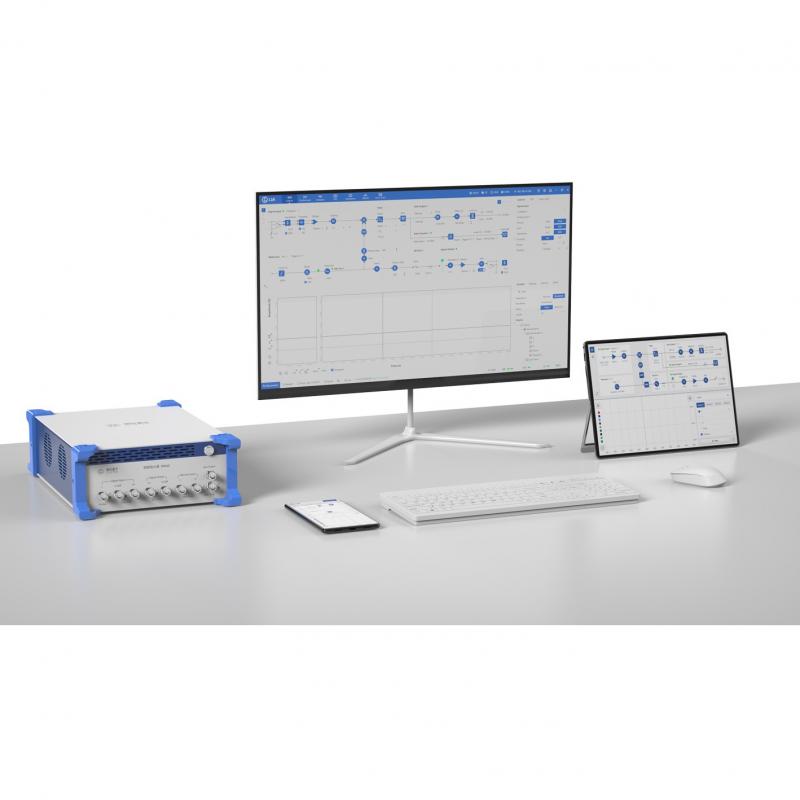

Meanwhile, Melab supports an easy mode for a quick start, which simplifies the workflow of scientific research, reduces the need for researchers to combine multiple devices, and improves the efficiency and quality of scientific research.

DC to 1 MHz/5 MHz (optional)

One current input and one differential voltage input

4+4+4 application mode (4 demodulators + 4 external references + 4 PIDs) (optional)

Sampling rate: 100 MSa/s, 16 bit ADC

Full-scale sensitivity: 1n V～3 V

Noise density: < 2.5 nV/ Hz

Dynamic reserve: > 120 dB

Supports Sine and TTL reference signal input and output

Support 1/1023~1023 harmonics detection

> Functional Options

♦ 5M demodulation frequency

♦ 4 demodulators

♦ 4 PID controllers

♦ External wireless operating panel

♦ AM/FM modulation

♦ Stage Ctrl (platform control)

Optical measurements, spectroscopy

Impedance measurement

Magnetic measurement

Biomedical

Semiconductor materials and devices

Signal Input (Voltage and Current)

Voltage Channel	1 (single-ended and differential)
Current Channel	1
Frequency Range	DC ~ 1 MHz/5 MHz (optional)
Voltage Input Range	±1 mV, ±3 mV, ±10 mV, ±30 mV, ±100 mV, ±300 mV, ±1 V, ±3 V
Voltage Input Noise	2.5 nV/√HZ@1 kHz
Full-scale Input Sensitivity (Voltage Input)	1nV - 3V
Current Input Range	±1 nA, ±10 nA, ±100 nA, ±1 µA, ±10 µA, ±100 µA, ±1 mA, ±10 mA
Current Input Noise	14 fA /√HZ@100 Hz
Full-scale Input Sensitivity (Current Input)	10 fA ~ 10 mA
Dynamic Reserve	≥120 dB

Reference Output

Number of Channels	1
Frequency Range	DC ~ 1 MHz/5 MHz (optional)
Output Voltage Range	±10 mV, ±100 mV, ±1 V, ±10 V
Signal Type	Sine/TTL
Output Phase Range	±180°
Maximum Output Current	100 mA

Demodulator and Reference

Number of Demodulators	1 dual-phase/4 dual-phase (optional)
Reference Mode	Internal reference; External reference
Harmonic Detection	Supports (n/m)* Fth harmonic measurement, (n/m)* F<1 MHz/5 MHz (optional); n range (harmonics): 1~1023; m range (harmonics): 1~1023
Time Constant	126 ns~30 ks
Filter Slope (dB/oct)	6, 12, 18, 24, 30, 36, 42, 48
Other Filter Functions	Sinc filter
Phase Resolution	10 udeg
Frequency Resolution	355 nHz

Reference Input (can be set to 2 auxiliary inputs)

Number of Channels	2
Frequency Range	DC ~ 1 MHz/5 MHz (optional)
Signal Type	Sine/TTL
Voltage Input Range	±10 V

Auxiliary Input

Number of Channels	2
Voltage Input Range	±10 V

Auxiliary Output

Number of Channels	4
Output Voltage Range	±10 V
Maximum Output Current	20mA

Communications

Communications Interface

USB2.0 (device) + USB3.0 (host)

LAN/1 Gbps

Hot Tags : Digital Lock-in Amplifier manufacturer Digital Lock-in Amplifier best price Digital Lock-in Amplifier for research high-performance and multi-functional digital lock-in amplifier Digital Lock-in Amplifier applications notes pdf Digital Lock-in Amplifier supplier Digital Lock-in Amplifier Lock-in Amplifier

Leave A Message

Please feel free to contact us for more details, request a quote or book an online demo! We will reply you as soon as we can.

Subject : Digital Lock-in Amplifier | Melab

Submit

Related Products

Digital Lock-in Amplifier best price for sale

Digital Lock-in Amplifier | LIA001M

CIQTEK LIA001M is a high-performance lock-in amplifier that combines various functions such as lock-in amplification, virtual oscilloscope analysis, parameter scanning, demodulation plotting, and data analysis. Based on advanced digital signal processing technology and hardware design, it can accurately and quickly detect weak signals drowned in strong noise. It is one of the important tools for modern weak signal detection and analysis and can be used in various scientific research and industrial applications.

Learn More

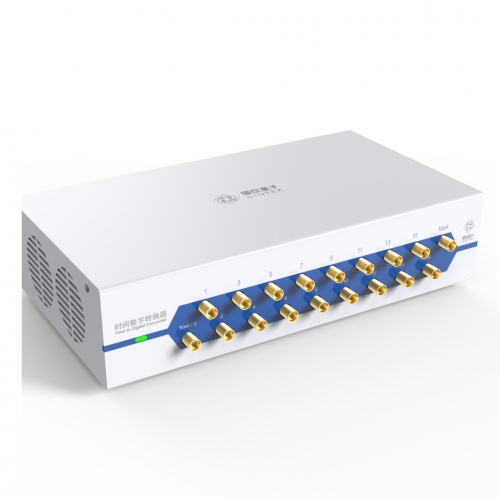

Time-to-Digital Converter | TDC1610
