Time-to-Digital Converter | TDC1610

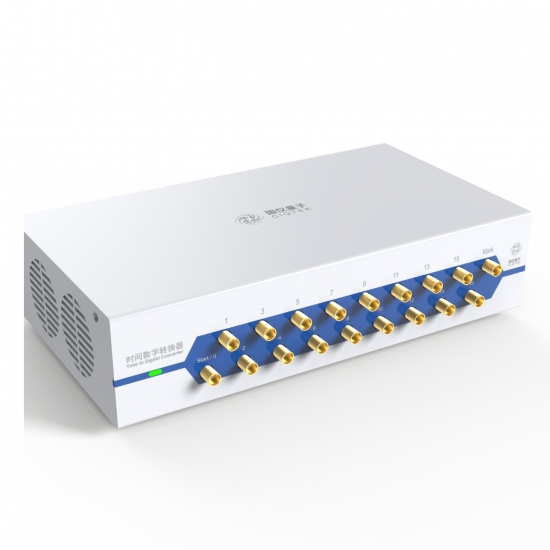

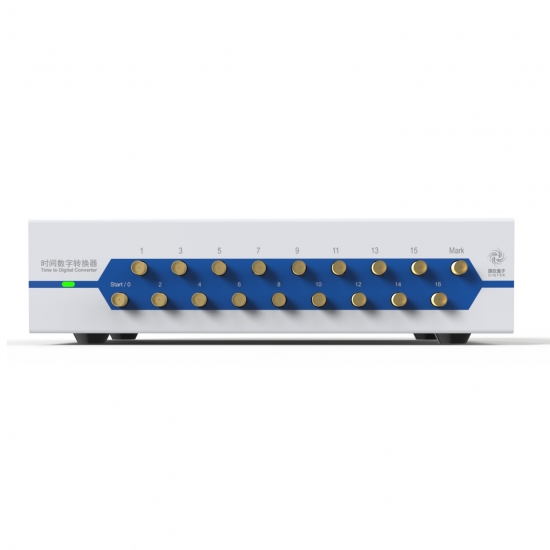

CIQTEK TDC1610 is a compact high-precision time measurement instrument with 16 acquisition channels, 8ps time resolution, and support for time tag mode, which can record the time information of the acquired signal in real time. It adopts an easy-to-operate graphical interface and provides C++, Python, and LabVIEW SDKs for secondary development. It can be widely used in scientific research fields such as statistical laser post-pulse distribution, quantum optics, optical detection, and lidar ranging.

Time resolution 8 ps

Single channel saturation count rate 71 Mcps

Dead time less than 14 ns

Jitter less than 17 ps

Support Timestamp Mode

Support conforming counting function

> Quantum Optics and Quantum Communication

> Time-dependent Single Photon Counting

> Optical Coherence Detection

> Fluorescence Lifetime and Fluorescence Spectroscopy

> Laser Post-pulse Detection

> Laser Radar

TDC Time-to-Digital Converter

Time Resolution (Minimum Time Width)	8ps
Dead Time	<14ns
Jitter	<17ps
Dynamic Range	4 ns - 16 ms (@ Resolution 8 ps)
Channel Saturation Count Rate	71 Mcounts/sec Non-parallel
Collection Time	1 ms ~ 100 h

Channel Features

Channels	1+16
Interface Type	SMA
Input Impedance	50 Ω
Input Voltage Range	-5 V ~ +5 V
Threshold Resolution	1 mV
Trigger Method	Threshold Triggering (rising/falling edge)

Marker Channel

Channels	1
Interface Type	SMA
Input Impedance	50 Ω
Input Voltage Range	-5 V ~ +5 V
Threshold Resolution	1 mV
