Digital Delay and Pulse Generator for sale

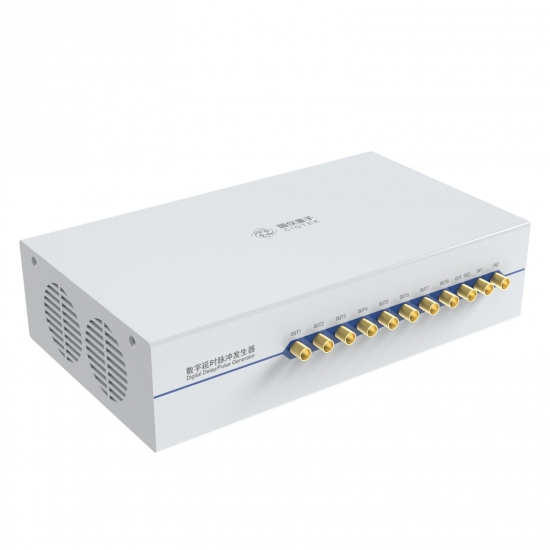

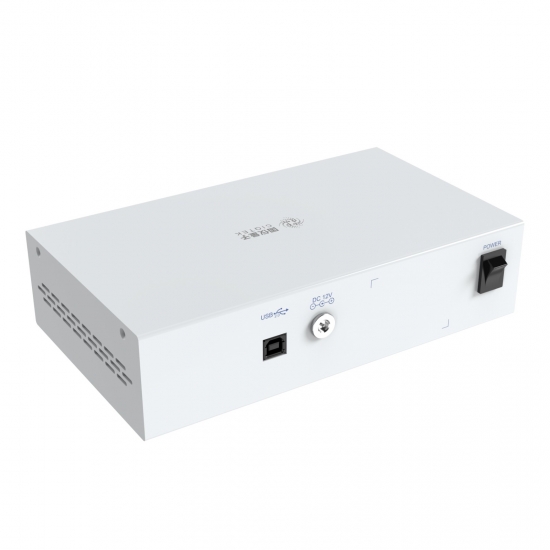

Digital Delay & Pulse Generator | ASG8000

CIQTEK ASG8000 series are high-speed, high-time resolution, programmable digital delay pulse generators capable of outputting complex pulse sequences with 1ns width resolution while providing lower RMS jitter, higher accuracy, more output interfaces, and freer scheduling.

The product provides precise timing control functions for a wide variety of applications in microscopic magnetic resonance (NMR, EPR, ODMR), quantum computing, ultrasound, radar, medical imaging, and many other fields.

The SDK supports C++, Python, and LabVIEW.

Inquire Now

Delay and Pulse Generator
Delay resolution 52ps
Synchronization Controller
Interchannel delay 250 ps
Frequency Divider
Access to 20 - 80 M variable clock signal

Burst Generator
Trigger-to-output delay jitter time less than 1 ns

Quantum Optics
Quantum Computing
Laser Spectroscopy
Radar

Output Module

Channels	8
Output Level	3.3 V ±1% @into 50 Ω
Rise Time	≤ 600 ps (20%~80%)
Fall Time	≤ 600 ps (20%~80%)
Time Resolution	1/4 ns
Pulse Width	1~(232-1) ns
Delay Range	0~(232-1) ns
Delay Resolution	52 ps
RMS Jitter	≤35 ps

Counter Module

Channels	1
Threshold	1-5 V
Maximum Sampling Frequency	125 MHz
Acquisition Minimum Pulse Width	1 ns
Matching Impedance	50 Ω

General Parameters

Communication Interface	USB
Size	214124.553mm

Clock Input Module

Channel	1
Input Voltage Range	0-3.5 V
Matching Impedance	50 Ω

Clock Output Module

Channel	1
Output Voltage	1.5 V@50 Ω
Output Frequency	100 MHz2

Trigger Module

Channel	1
Input Voltage Range	1-5 V
Input Impedance	50 Ω
