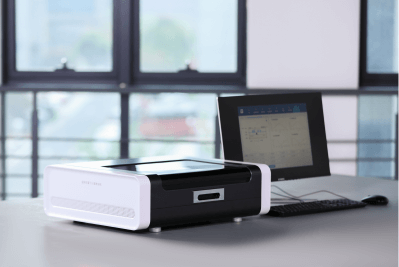

Diamond Quantum Computer for Education

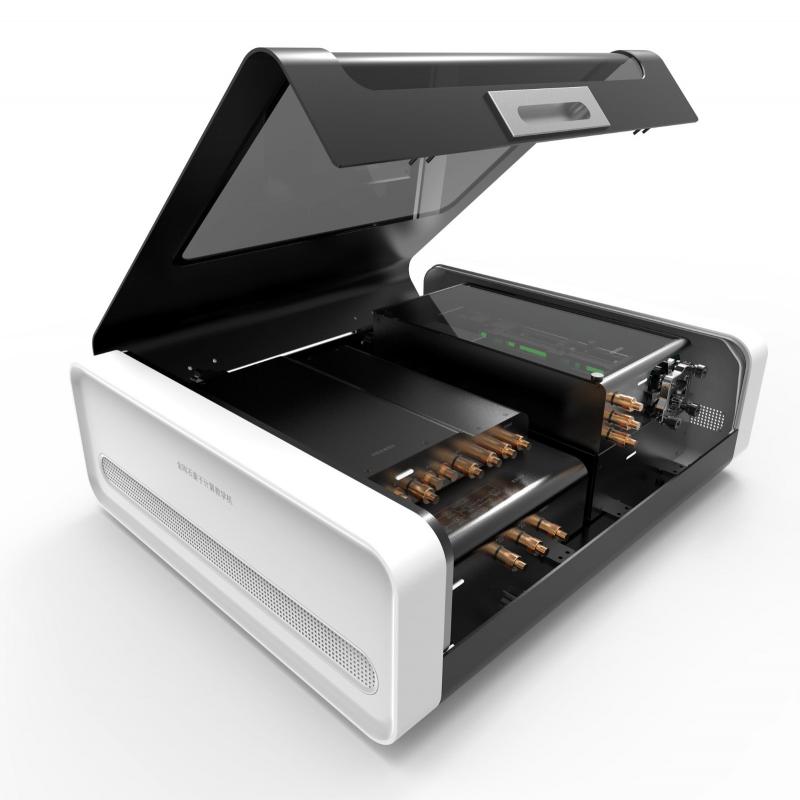

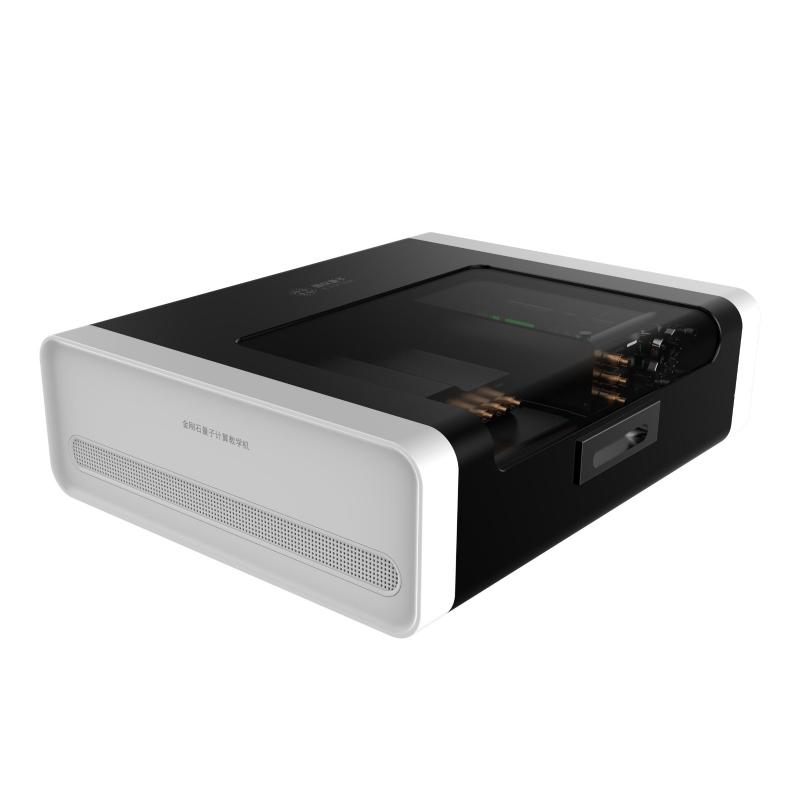

CIQTEK Diamond Quantum Computer for Education is a teaching instrument based on the diamond's spin magnetic resonance of the nitrogen-vacancy (NV) center. By controlling basic physical quantities such as optics, electricity, and magnetism, it implements quantum manipulation and readout of NV center spins, which enables the demonstration of basic concepts of quantum computing, such as qubits, quantum gates, and quantum algorithms.



The instrument works at room temperature (no need for a cryogenic environment), making the operating cost almost zero. The desktop design makes it easy to adapt to classrooms, laboratories, and other settings for conducting quantum mechanics and quantum computing experimental courses.

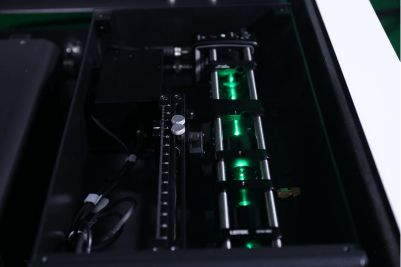

Diamond Quantum Computer for Education consists of the microwave module, optical module, power module, control and acquisition module. The rich hardware enables the instrument to support a variety of basic experiments related to quantum computing, as well as the development of additional teaching contents such as the quantum precise measurement and optically detected magnetic resonance (ODMR).


Instrument Calibration

Set up and adjust the instrument, get familiar with the principle of optically detected magnetic resonance, nitrogen-vacancy (NV) center in diamonds, microwave generation, and pulse control.



Continuous Wave

Measure optically detected magnetic resonance spectra of NV centers, determine microwave resonance frequencies, and understand quantum bits.



Rabi Oscillation

Measurement of Rabi oscillations in NV color centers driven by microwaves and determine the microwave pulse corresponding to a quantum logic gate.



Spin Echo

Spin echo is an effective technique used to suppress the coupling between the qubit and the environment, so as to prolong the coherence time.



T2 Measurement

T2 experiment shows the evolution of the quantum superposition state and measures the decoherence time of NV center spin.



Dynamical Decoupling

The decoherence time is extended by designing the dynamical decoupling sequence to average out the coupling between the qubit and the environment.



D.J. Algorithm

A Deutsch-Jozsa quantum algorithm is realized on the NV center quantum processor.



Parameters Values
Qubit Nitrogen-vacancy center (NV-center) in diamond
Laser Power 10 mW
Magnetic Field 30±20 Gauss
Microwave Channels 2
Time Accuracy 2 ns
Pulse Generator Channels 8



Leave A Message
Please feel free to contact us for more details, request a quote or book an online demo! We will reply you as soon as we can.
Submit
Related Products
Quantum Photon Experimental Platform for sale

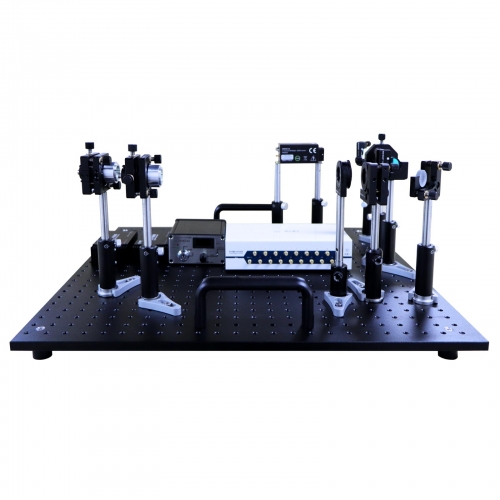

CIQTEK Quantum Photon Experimental Platform adopts BBO parametric down-conversion, single photon detection, and other technologies, which can carry out experiments such as quantum entanglement source preparation and verification, and quantum random number generation. At the same time, the hardware module supports manual construction and debugging. The benchtop design allows it to adapt to a variety of different teaching environments, both in the classroom and in the laboratory, where experimental teaching of quantum optics can be easily carried out. CIQTEK Quantum Photon Experimental Platform can help and promote universities and colleges to open and optimize advanced physics experimental courses, modern physics experimental courses, optical engineering professional courses, and other related work.
